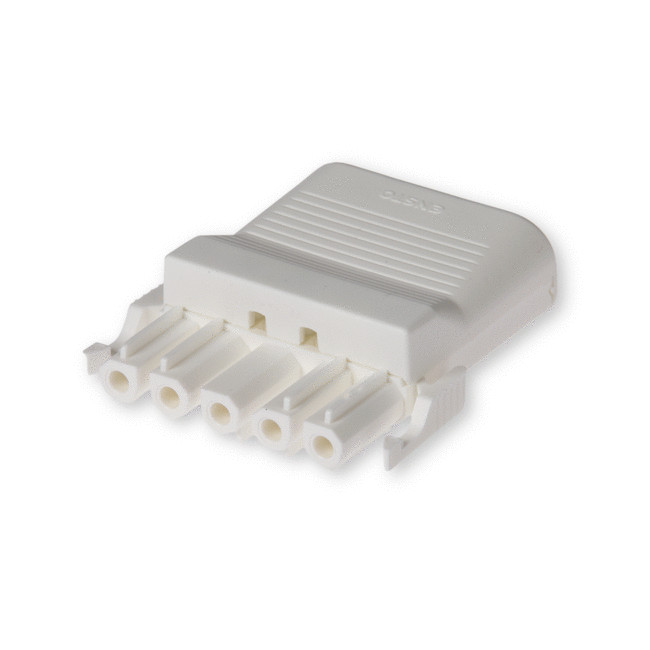

INSTALLATION COUPLER 5-WAY RECEPTACLE WITH STRAIN-R
Product code
1934774
White (1, 2, PE, N, 3), low
5-pole female screw terminals with strain relief
For fine, multi, and single-core wires 0.75 - 4.0 mm². Strain relief for cables with outer diameter 8.6 - 14.5 mm.
In terminals NAC52SL.W, NAC52SL.B and NCC52SL.G, strain relief for cables with outer diameter 4.5 - 11.0 mm. Weight 25.8 g/pc.
Terminal markings in parentheses. This product description is an automated translation of the original Finnish description.
For fine, multi, and single-core wires 0.75 - 4.0 mm². Strain relief for cables with outer diameter 8.6 - 14.5 mm.
In terminals NAC52SL.W, NAC52SL.B and NCC52SL.G, strain relief for cables with outer diameter 4.5 - 11.0 mm. Weight 25.8 g/pc.
Terminal markings in parentheses. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Plug-in connector for plug-in building installation (EC002560)
ModelBus
Rated voltage400 V
Rated current20 A
Number of poles5
Degree of protection (IP)IP20
Connection typeScrew connection
Cable diameter5.5-10 mm
Connection cross section (fine-strand)0.75-4 mm²
Connection cross section (solid-core)0.75-4 mm²
Number of connections per pole1
Pole codification3, N, PE, 2, 1
Mechanical codingyes
Colour coding/contact insertWhite
Type of lockingIntegrated in plug-in connector
With strain reliefyes
Product codes
SAPABS596
STK1934774
PLC1934774
GTIN/EAN6418677114496
Manufacturer part numberNAC52SL.W
Vendor material number1934774
Basic information
Package measurements (L x W x H)0 x 0 x 0 mm
Package volume0.111 l
Package weight0.027 kg
Base uniteach
Package units100 / 6300
Package contents–
UNSPSC39121421
BrandENSTO
VendorLEGRAND FINLAND OY
The country of origin stated by the supplierFinland
Documents (3)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.1926
GWP, uniteach
Source for GWP dataEPD
