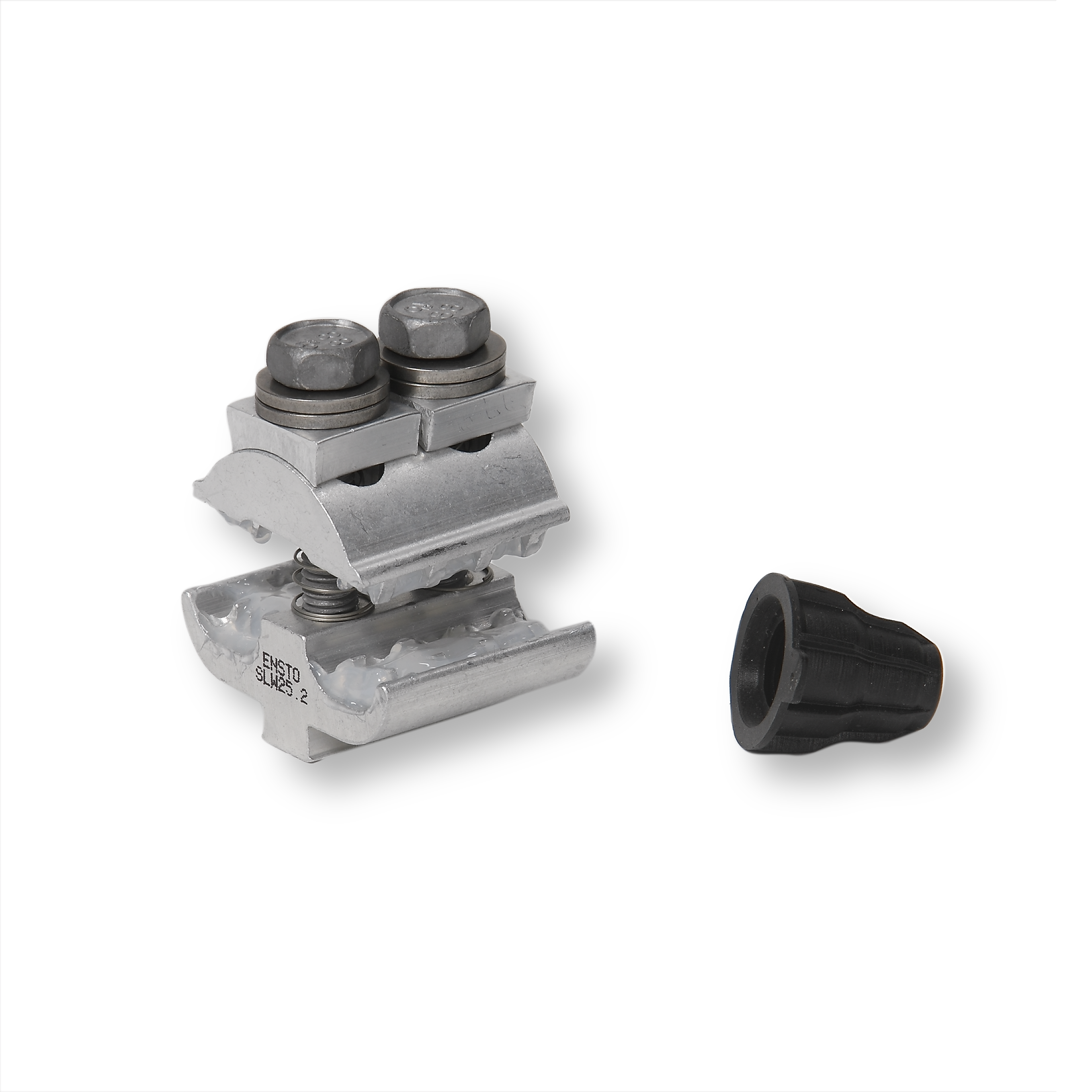

IPC CONNECTOR SLW25.2 PAS/BLL-T50-157
Product code
5043133
PAS/BLL-T 50-157 / 50-157 AlMgSi
Used for connecting branch lines with PAS/BLL cables. The conductor does not need to be stripped because both sides of the connector are equipped with insulation-piercing teeth. The connector is watertight due to silicone-greased teeth. The connector is made of corrosion-resistant aluminum, hot-dip galvanized screws, pre-greased and packed in a plastic bag. The connection can be protected with the SP16 protective enclosure. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Branch terminal (EC001062)
Nominal cross section main conductor, SE50-157 mm²
Nominal cross section main conductor, SM50-157 mm²
Nominal cross section branch conductor, SE/RE50-157 mm²
Nominal cross section branch conductor, SM/RM50-157 mm²
Material main conductorAluminium
Material branch conductorAluminium
Terminal insulatedno
Clamping channel opening main conductorBoth sides open
Clamping channel opening branch conductorBoth sides open
Surface protectionBare
Type of connectionInsulation piercing connector IPC
Product codes
SAPAMM001
STK5043133
PLC5043133
GTIN/EAN6438100304201
Manufacturer part numberSLW25.2
Vendor material number5043133
Basic information
Package measurements (L x W x H)70 x 60 x 50 mm
Package volume0.21 l
Package weight0.25 kg
Base uniteach
Package units1 / 1750
Package contents–
UNSPSC39121717
BrandENSTO
VendorENSTO FINLAND OY
