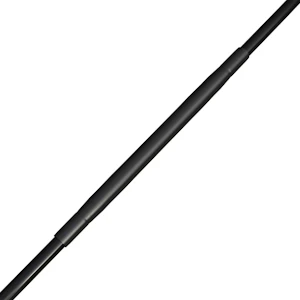

Joint 1-core 50-240mm2,with co CJ11.2403C
Product code
5221615

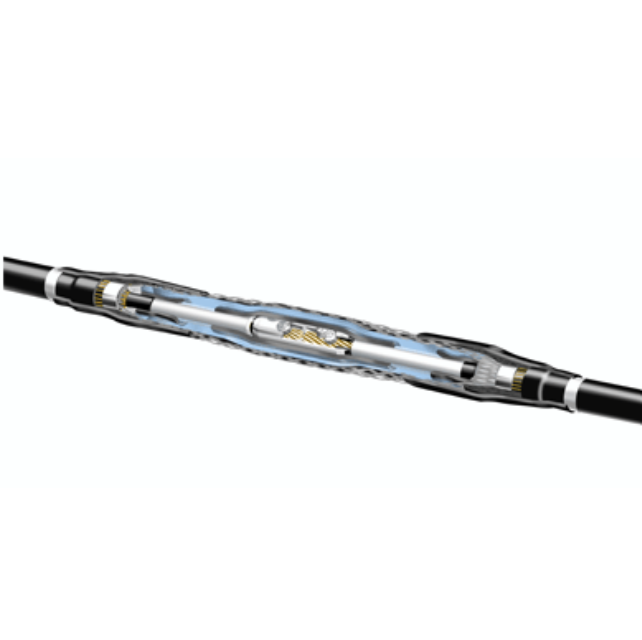

Extension kits are used for splicing PEX-insulated cables with copper wire shielding up to a maximum of 24 kV. The kit is suitable for single-core cables containing accessories for one conductor. The kit includes a torque screw splice sleeve suitable for both aluminum and copper conductors and all accessories required for splicing: masses, tapes, cold-shrink insulation tubing with field-guiding elements, and a sheath tube. The kit also includes a tubular copper network and constant-force springs for splicing the copper wire shielding.
Selecto helps you choose the most suitable Ensto earth cable products for a single cable or a combination of two cables. You can select products from three main lines: terminations, touch-safe plug terminations, and cable splices at https://selecto.ensto.com/selecto.aspx?lang=fi&country=fi. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Straight-through joint (EC001169)
Rated voltage U0/U (Um)12.7/22 (24) kV
ModelCold-shrink
Number of conductors1
Nominal cross section conductor70-240 mm²
With concentric shieldingyes
Connection accessories includedScrew connector with shear-off head
Halogen freeyes
Product codes
SAPAQV972
STK5221615
PLC5221615
GTIN/EAN6438100300548
Manufacturer part numberCJ11.2403C
Vendor material number5221615
Basic information
Package measurements (L x W x H)1200 x 200 x 180 mm
Package volume43.2 l
Package weight2.28 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121718
BrandENSTO
VendorENSTO FINLAND OY
Documents (2)
Images
Links
Environment and safety
Features
Fully recyclable packagingRecyclable
Cr (VI) freeYes
