JOINT 20KV 3-CORE HJ33.2402C (25-95MM2 INC.CONN.

Product code
5221292
12/20 (24) kV Al/Cu 10-95 mm² 3 core with connectors SMJ

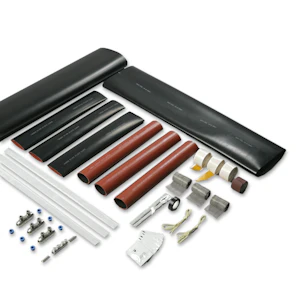

The extension kit is used for splicing maximum 24 kV PEX-insulated cables with copper wire shielding. The kit is suitable for three-core cables. The kit includes torque screw splice connectors suitable for both aluminum and copper conductors and all accessories required for splicing: masses, tapes, heat-shrink field control tubes, insulating and semiconducting tubes, and outer tubes. The kit also includes copper braid for shielding the splice and the torque screw splice connector for cable C. Selecto helps you choose the most suitable Ensto earth cable products for a single cable or a combination of two cables. You can select products from three main lines: terminations, touch-safe plug terminations, and cable splices at https://selecto.ensto.com/selecto.aspx?lang=fi&country=fi. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Straight-through joint (EC001169)
Rated voltage U0/U (Um)12/20 (24) kV
ModelHeat-shrink
Number of conductors3
Nominal cross section conductor10 - 95 mm²
With concentric shieldingyes
Halogen freeyes

Product codes

SAPAEE573
STK5221292
PLC5221292
GTIN/EAN6438100305178
Manufacturer part numberHJ33.2402C-EST
Vendor material number5221292

Basic information

Package measurements (L x W x H)1200 x 190 x 190 mm
Package volume43.32 l
Package weight6.3 kg
Base uniteach
Package units1 / 4 / 20
Package contents
UNSPSC39121718
BrandENSTO
VendorENSTO FINLAND OY

Documents (1)

Environment and safety

Features

Fully recyclable packagingRecyclable
Cr (VI) freeYes
