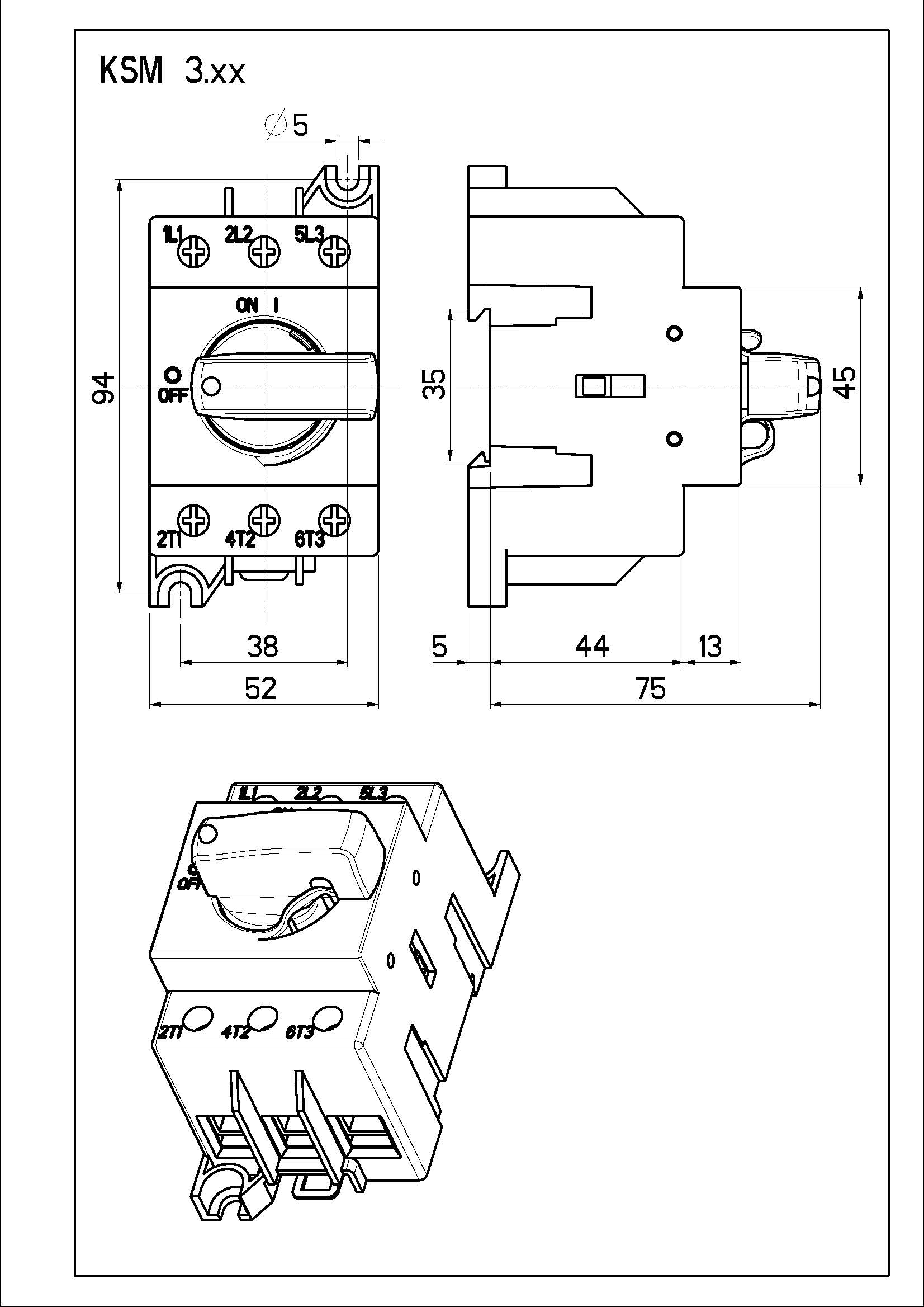

LOAD BREAK SWITCH ROTARY KSM3.125 3-POLE 125A,WITH HAND
Product code
3636362
3 x 125 A, with direct handle, panel and DIN rail mounted
Ensto Compact is a comprehensive range of torque switches with rated currents of 16–125 A. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Switch disconnector (AC) (EC000216)
Version as main switchyes
Version as maintenance-/service switchyes
Version as safety switchno
Version as emergency stop installationno
Version as reversing switchno
Number of switches1
Max. rated operation voltage Ue AC690 V
Rated operating voltage400-690 V
Rated permanent current Iu125 A
Rated permanent current at AC-23, 400 V80 A
Rated permanent current at AC-21, 400 V125 A
Rated operation power at AC-3, 400 V10 kW
Rated short-time withstand current lcw1.5 kA
Rated operation power at AC-23, 400 V45 kW
Switching power at 400 V0 kW
Product codes
SAPABE703
STK3636362
PLC3636362
GTIN/EAN6418677169779
Manufacturer part numberKSM3.125
Vendor material number3636362
Basic information
Package measurements (L x W x H)102 x 55 x 81 mm
Package volume0.454 l
Package weight0.261 kg
Base uniteach
Package units1
Package contents–
UNSPSC39121529
BrandENSTO
VendorLEGRAND FINLAND OY
The country of origin stated by the supplierFinland
