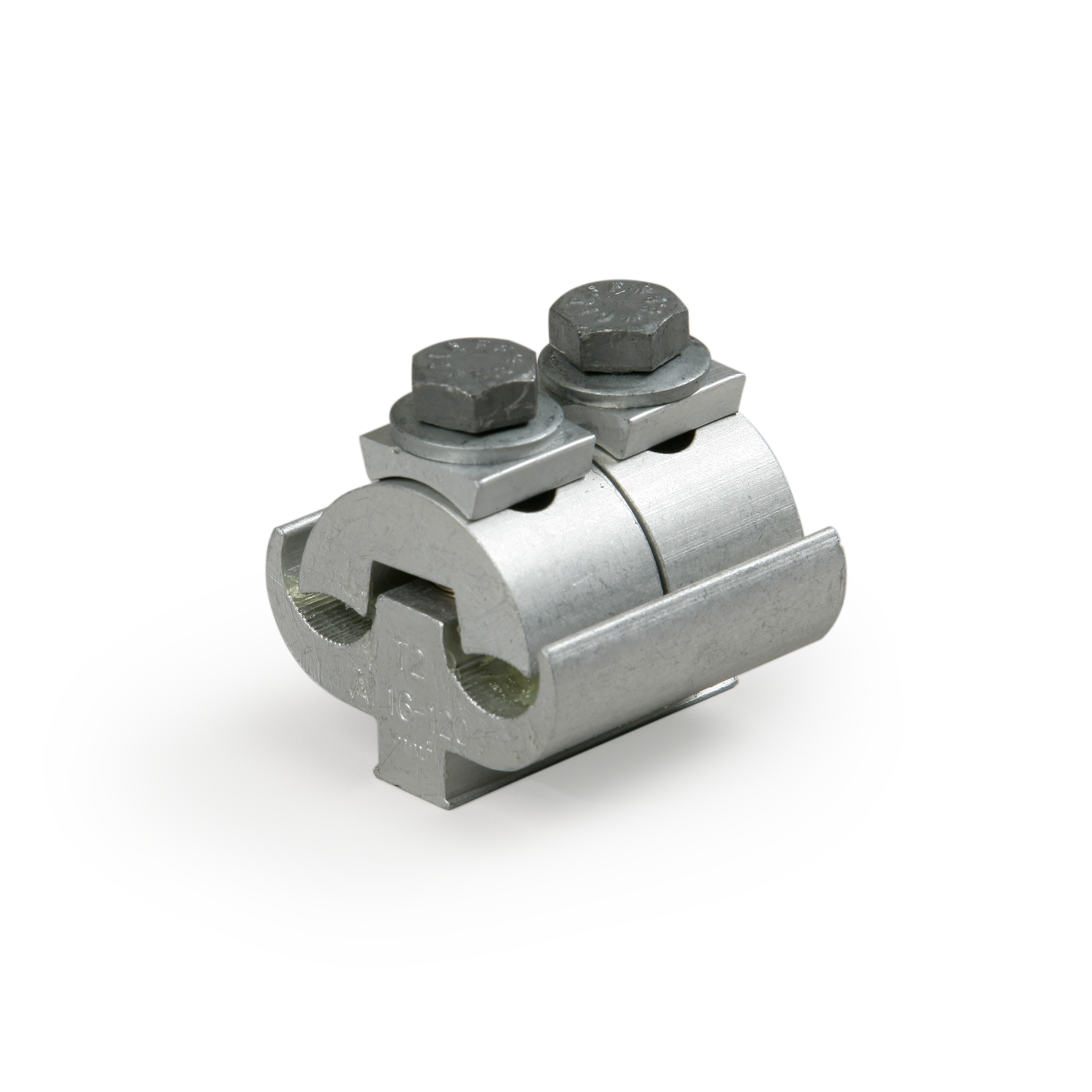

MATE-UP CONNECTOR SL 4.25 KOSKETUSLIITIN
Product code
5043268
Al 16-120 mm² / Al 16-120 mm²
SL4.25 is brushed and prepared with joint compound and so, only the conductors need brushing and greasing. SL4.25 is equipped with springs. Non tension aluminium to aluminium connector is equipped with two M8 bolts.
Product details
Technical specifications
Nominal cross section main conductor, SE16 ... 120 mm²
Nominal cross section main conductor, SM16 ... 120 mm²
Nominal cross section branch conductor, SE/RE16 ... 120 mm²
Nominal cross section branch conductor, SM/RM16 ... 120 mm²
Material main conductorAluminium
Material branch conductorAluminium
Terminal insulatedfalse
Clamping channel opening main conductorBoth sides open
Clamping channel opening branch conductorBoth sides open
Surface protectionBare
Type of connectionScrewed connection
Type of connectionNot applicable
Nominal cross section branch# mm²
Nominal cross section transition16 ... 120 mm²
Product codes
SAPAAK182
PLC5043268
STK5043268
GTIN/EAN6418677403750
Manufacturer part numberSL4.25
Vendor material number5043268
Basic information
Package measurements (L x W x H)57 x 54 x 44 mm
Package volume0.135 l
Package weight0.126 kg
Base uniteach
Package units1 / 50
Package contents–
UNSPSC26121538
BrandENSTO
VendorENSTO FINLAND OY
The country of origin stated by the supplierFinland
Documents (7)
Brochures & documents
Links
Sustainability information
Features
Produced in high risk countriesNo
Fully recyclable packagingRecyclable
Cr (VI) freeYes
