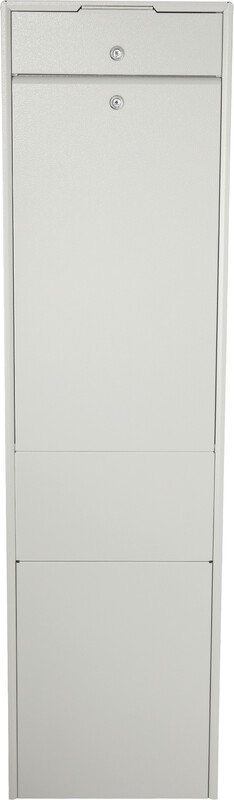

METER CABINET ESTERI EVO50.06-ELC 2T 50A IP34 FE

Product code
3440363

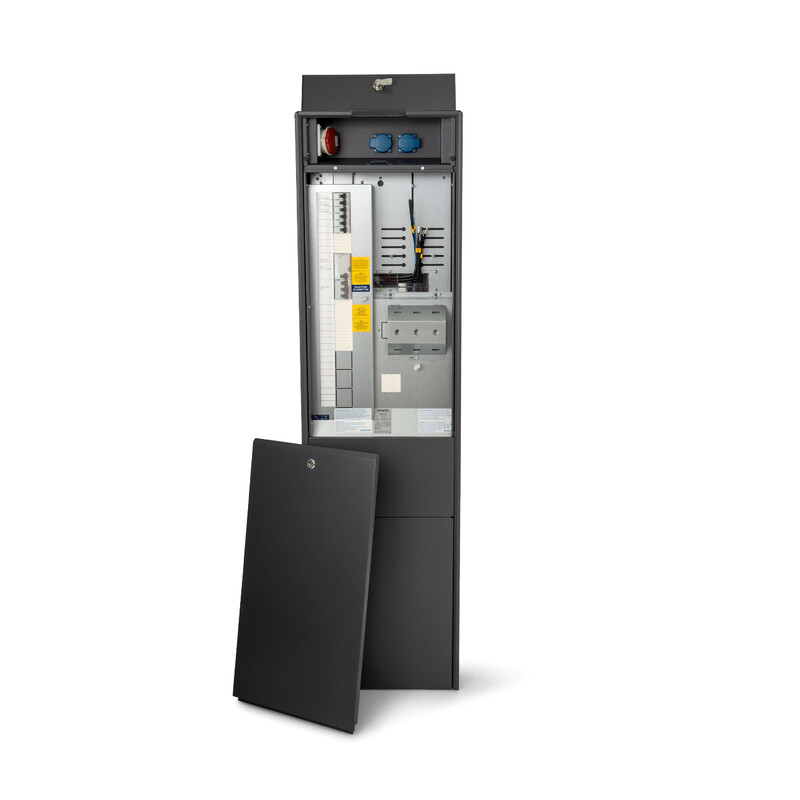

Modern 2-tariff metering center with one meter rack, residual current device, and six circuit breakers. Space reserved for surge protectors EVL2.23. Metering before the main switch. The center has a separate compartment for sockets with two single-phase and one three-phase 16A sockets protected by a 30 mA residual current device. The center also comes with 25 A main fuses, base contacts, and interchangeable carriers. The center has a fixed base. The color of the center is RAL7035E. 50A This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Meter cabinet equipped (EC000262)
Rated current50 A
Model2-story
Number of meter boards1
Connection space, power sideWith clamps
Mounting methodSurface mounted
MaterialSteel
Number of distributor rows1
Number of fields1
With mounting plateyes
Degree of protection (IP)IP3X
Width440 mm
Height1660 mm
Depth165 mm

Product codes

SAPCMJ487
STK3440363
PLC3440363
GTIN/EAN6438100373573
Manufacturer part numberEVO50.06-ELC
Vendor material number3440363

Basic information

Package measurements (L x W x H)1700 x 455 x 180 mm
Package volume139.23 l
Package weight34 kg
Base uniteach
Package units1 / 10
Package contents
UNSPSC39121105
BrandENSTO
VendorLEGRAND FINLAND OY
The country of origin stated by the supplierFinland
