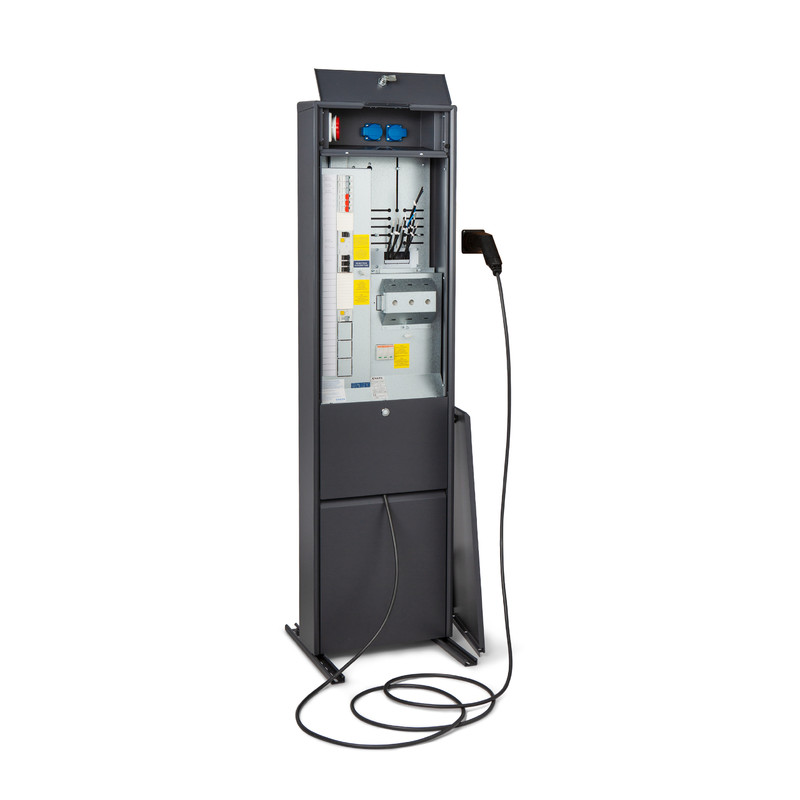

METER CABINET EVO50.06ELY-EV16DG 2T 50A IP34

Modern 2-tariff metering center with integrated 1x16A electric vehicle charging unit, one metering rack, circuit breakers, and surge protection. Metering before the main switch. The center includes a separate compartment for sockets with two single-phase and one three-phase 16A sockets, protected by a 30 mA residual current device. The center is supplied with 25 A main fuses, base contacts, and transfer switches. The center has a fixed base. Color of the center: RAL7024. Modern Esteri outdoor metering center now also includes an electric vehicle charging station. Ensto’s patented solution is unique on the market, combining the latest technology and usability from both metering centers and vehicle charging. For single-family homes or holiday homes, there is no longer a need for a separate device for vehicle charging when the metering center is located near the parking spot, such as in a carport or on a building facade. Thanks to this integration, only one installation is required, resulting in a single cohesive design. For the user, charging is super easy and safe. The metering center incorporates the same technology and functions as the Ensto One Home charging station. Its charging power is 16A/3.6kW and it features built-in DC leakage current monitoring (RDC-DD, 6mA). What distinguishes it from other Esteri outdoor metering centers is its fixed charging cable and indicator light showing charging status. The five-meter cable has a Type 2 plug compatible with all common electric vehicles. With the Ensto Charger Control mobile app, it is easy to adjust the charging current between 6A and 16A. The Bluetooth-enabled app offers two different operating modes: free and authenticated. In the authenticated mode, charging can only be initiated from a smartphone paired with the metering center. Ensto integrated the charging station into the metering center Ensto expands the Esteri outdoor metering center product family with a model that includes an electric vehicle charging station. Single-family homes no longer require a separate device for vehicle charging; proximity to the metering center at the parking spot is sufficient. The charging technology is familiar from the Ensto One Home charging station. The fixed 5-meter cable (Type 2) delivers 16A/3.6kW power. Charging current can be easily adjusted between 6A and 16A via the mobile app, which also allows authentication if needed. The charging unit features built-in DC leakage current monitoring (RDC-DD, 6mA). The metering center is based on the recently introduced EVO50.06-ELY metering center, designed with a stylish form to suit modern architecture. The center is already in use on construction sites, as it has a fixed base that can be mounted on rails, for example, onto a pallet. Additionally, the sockets required during construction are separated into their own compartment. Technical specifications:

• Enclosure class: IP34
• Rated current: 50A
• Surge protection: Yes, Type T2
• Residual current devices: 1 unit, circuit breakers: 1 unit, and circuit protection switches: 6 units (6 x C16)
• Space for additional modules: 14 modules.

Product information:

• 3440395 EVO50.06ELY-EV16DG Outdoor metering center with electric vehicle charging, fixed base, sockets, circuit breakers, and surge protection. Color RAL7024. 6438100385057
• 3440396 EVO50.06ELY-EV16LG Outdoor metering center with electric vehicle charging, fixed base, sockets, circuit breakers, and surge protection. Color RAL7035E. 6438100398101

This product description is an automated translation of the original Finnish description.
