METERING CENTRE EVEP150.06-ELTY 50A IP34 FE
Product code
3428057
with overvoltage protection

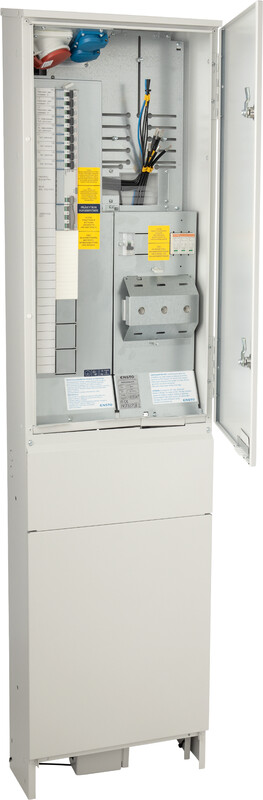

2-tariff metering center with one meter rack, residual current device, ten circuit breakers, and Class T2 surge protectors. Metering before the main switch. The center includes two 1-phase and one 3-phase 16A sockets protected by a 30mA residual current device. The center is supplied with 25A main fuses, base contacts, and interchangeable carriers. The center has a fixed base. The color of the center is RAL7035E. 50A. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Meter cabinet equipped (EC000262)
Rated current50 A
Number of meter boards1
Connection space, power sideWith clamps
Mounting methodSurface mounted
MaterialSteel
Number of distributor rows1
With mounting plateyes
Degree of protection (IP)IP3X

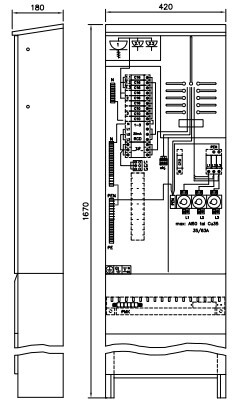

Width420 mm
Height1670 mm
Depth180 mm
Product codes
SAPAMT195
STK3428057
PLC3428057
GTIN/EAN6418677675515
Manufacturer part numberEVEP150.06-ELTY
Vendor material number3428057
Basic information
Package measurements (L x W x H)1675 x 440 x 190 mm
Package volume140.03 l
Package weight33 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC39121105
BrandENSTO
VendorLEGRAND FINLAND OY
The country of origin stated by the supplierFinland
