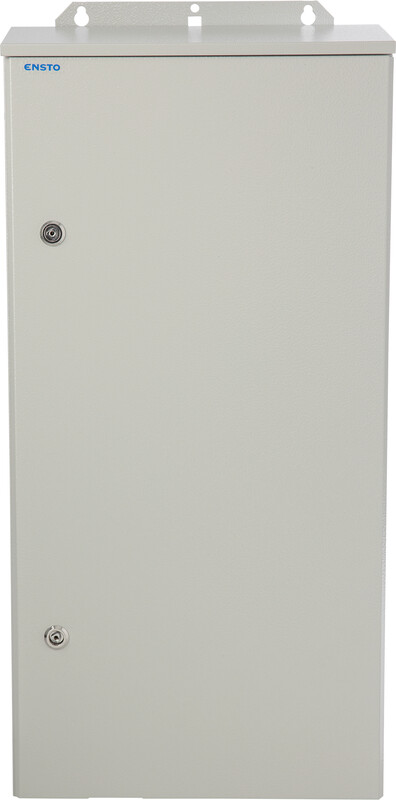

METERING CENTRE EVEP150.06-Y
Product code
3428060
with overvoltage protection
1-metering center with one meter rack, residual current device, six circuit breakers, and Class T2 surge protection. Metering before the main switch. The center includes two 1-phase and one 3-phase 16A sockets protected by a 30mA residual current device. The center is supplied with 25A main fuses, base contacts, and interchangeable carriers. Mounting on wall, pole, or stand EVL2.02 or EVL2.03. Center color RAL7035E. 50A. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Meter cabinet equipped (EC000262)
Rated current50 A
Number of meter boards1
Connection space, power sideWith clamps
Mounting methodSurface mounted
MaterialSteel
ColourGrey
RAL-number7035
Number of distributor rows1
With mounting plateyes
Degree of protection (IP)IP3X
Width420 mm
Height870 mm
Depth180 mm
Product codes
SAPAMY371
STK3428060
PLC3428060
GTIN/EAN6418677675560
Manufacturer part numberEVEP150.06-Y
Vendor material number3428060
Basic information
Package measurements (L x W x H)910 x 455 x 185 mm
Package volume76.599 l
Package weight18 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC39121105
BrandENSTO
VendorLEGRAND FINLAND OY
The country of origin stated by the supplierFinland
