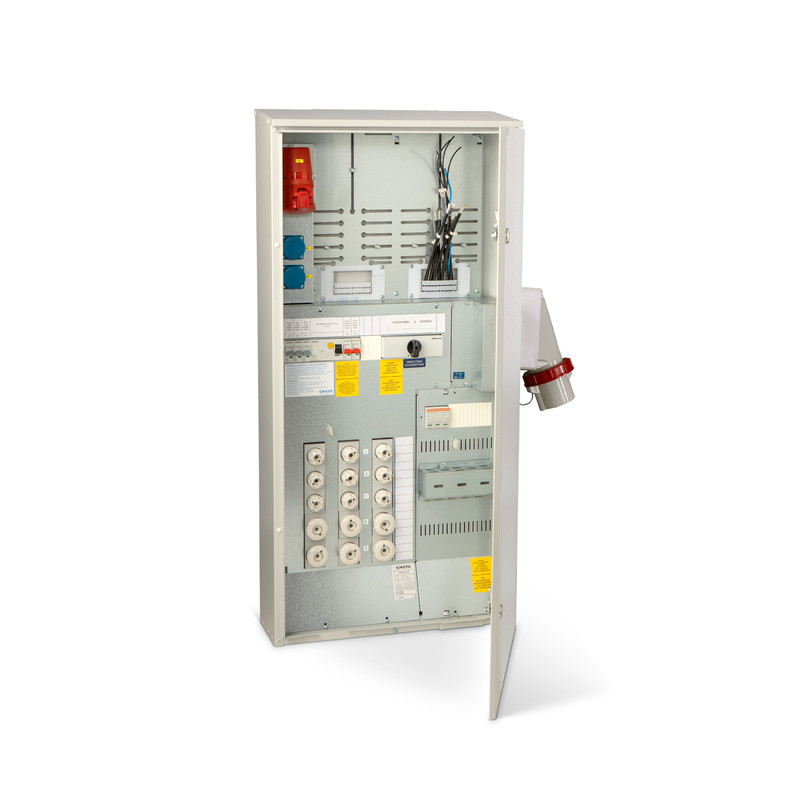

METERING PANEL EVEP63.15-GY 2T 63A IP34 FE
Product code
3428086
Generator centre with surge protectors
2-tariff metering center with 63A auxiliary power connection, residual current device, six circuit breakers, and Class T2 surge protectors. Standard equipment includes 25A main fuses, base contacts, and changeover switches. Contains two 1-phase and one 3-phase 16A sockets protected by 30mA residual current devices. Standard equipment includes a changeover switch, grid-0 auxiliary power. Mounting on wall, pillar, or EVL2.13 base. Color of the center RAL7035E. 63A. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Meter cabinet equipped (EC000262)
Rated current63 A
Number of meter boards1
Connection space, power sideWith clamps
Mounting methodSurface mounted
MaterialSteel
Number of distributor rows1
With mounting plateyes
Degree of protection (IP)IP3X
Width520 mm
Height1100 mm
Depth180 mm
Product codes
SAPCCL078
STK3428086
PLC3428086
GTIN/EAN6418677676901
Manufacturer part numberEVEP63.15-GY
Vendor material number3428086
Basic information
Package measurements (L x W x H)1100 x 520 x 180 mm
Package volume102.96 l
Package weight29 kg
Base uniteach
Package units1 / 5
Package contents–
UNSPSC39121105
BrandENSTO
VendorLEGRAND FINLAND OY
The country of origin stated by the supplierFinland
