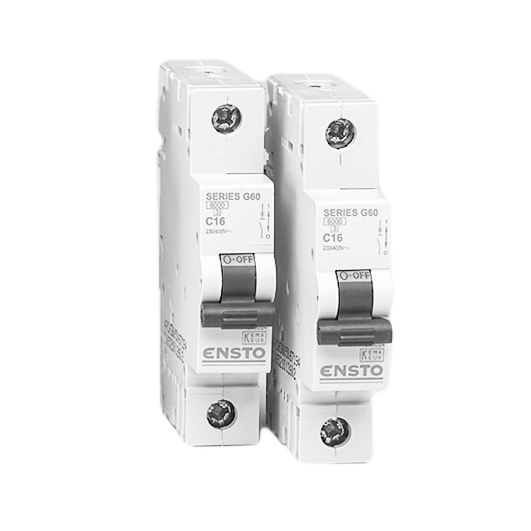

MINIATURE CIRCUIT BREAKER EKEC61.16 C-CHARACTERISTIC 16A
Product code
3236466
C 16 A
No product description available.
Product details
Technical specifications
Product class (ETIM)Miniature circuit breaker (MCB) (EC000042)
Built-in depth68 mm
Release characteristicC
Number of poles (total)1
Number of protected poles1
Rated current16 A
Rated voltage240 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6 kA
Voltage typeAC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V6 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V10 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V3 kA
Frequency50 - 60 Hz
Current limiting class3
Concurrently switching neutral conductorno
Pollution degree2
Product codes
SAPAAI102
STK3236466
PLC3236466
GTIN/EAN6418677665288
Manufacturer part numberEKEC61.16
Vendor material number3236466
Basic information
Package measurements (L x W x H)90 x 72 x 18 mm
Package volume0.117 l
Package weight0.11 kg
Base uniteach
Package units1 / 12 / 3456
Package contents–
UNSPSC39121603
BrandENSTO
VendorLEGRAND FINLAND OY
