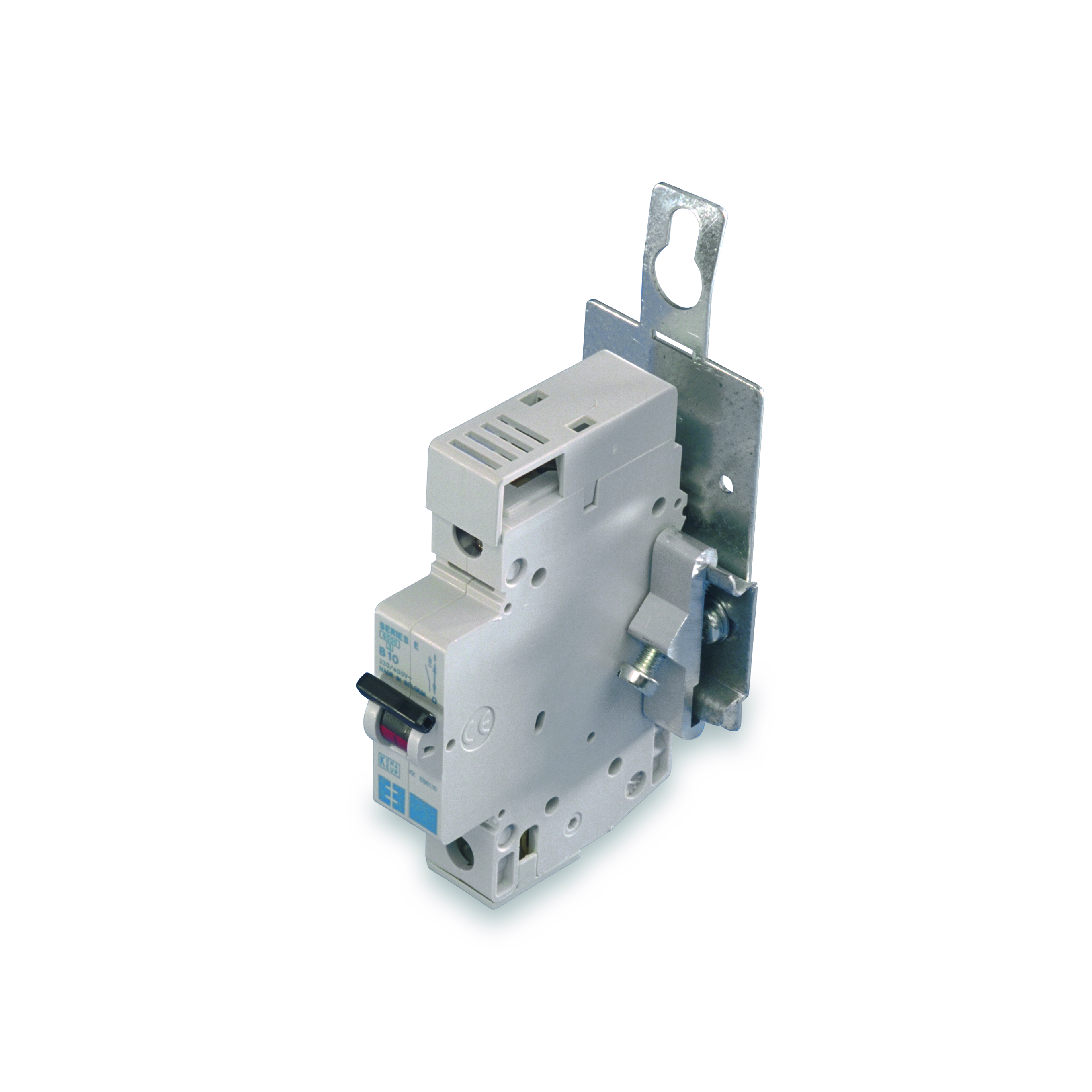

MINIATURE CIRCUIT BREAKER SVV 3 10A
Product code
4619063
0.4166666666666667
SVV3 line protection switch 10 A. Note! In lighting pole installations, the line protection switch must be protected against splashing water, for example by enclosing it. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Miniature circuit breaker (MCB) (EC000042)
Release characteristicB
Number of poles (total)1
Number of protected poles1
Rated current10 A
Rated voltage240 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6 kA
Voltage typeAC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V6 kA
Frequency50-50 Hz
Current limiting class3
Concurrently switching neutral conductorno
Additional equipment possibleno
Width in number of modular spacings1
Degree of protection (IP)IP20
Product codes
SAPAAX596
STK4619063
PLC4619063
GTIN/EAN6418677405853
Manufacturer part numberSVV3
Vendor material number4619063
Basic information
Package measurements (L x W x H)130 x 50 x 105 mm
Package volume0.683 l
Package weight0.1 kg
Base uniteach
Package units1 / 10
Package contents–
UNSPSC39121601
BrandENSTO
VendorENSTO FINLAND OY
Documents (1)
Links
Environment and safety
Features
Fully recyclable packagingRecyclable
Cr (VI) freeYes
