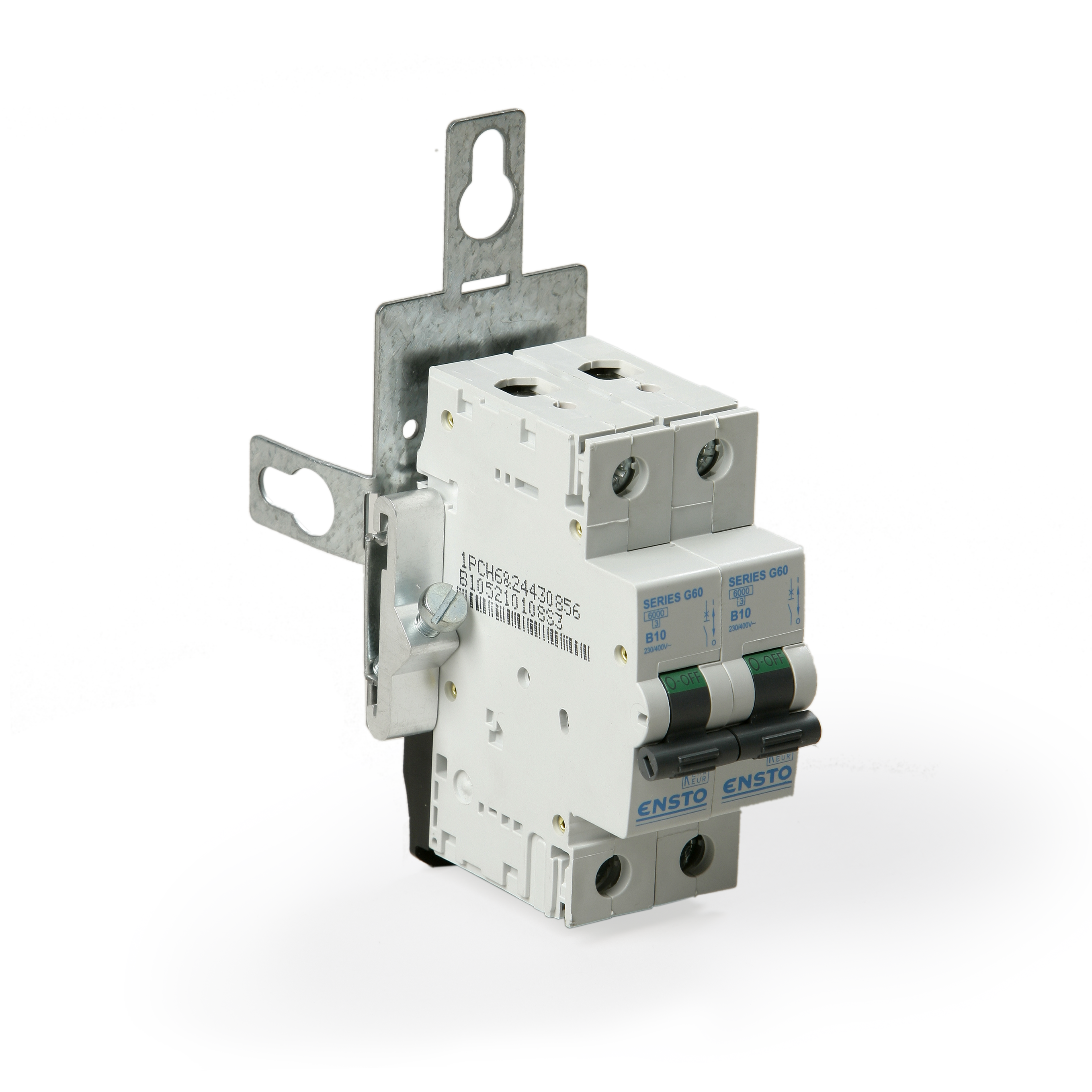

MINIATURE CIRCUIT BREAKER SVV 3.2 2X10A
Product code
4619066
10 A, 2 pole
SVV3.2 two-pole line protection switch 10 A. Note! In lighting column installations, the line protection switch must be protected against splashing water, for example by encasing it. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Miniature circuit breaker (MCB) (EC000042)
Release characteristicB
Number of poles (total)1
Number of protected poles1
Rated current10 A
Rated voltage240 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V6 kA
Voltage typeAC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V6 kA
Frequency50-50 Hz
Current limiting class3
Concurrently switching neutral conductorno
Additional equipment possibleyes
Width in number of modular spacings1
Degree of protection (IP)IP20
Product codes
SAPABE371
STK4619066
PLC4619066
GTIN/EAN6418677405877
Manufacturer part numberSVV3.2
Vendor material number4619066
Basic information
Package measurements (L x W x H)10 x 10 x 10 mm
Package volume0.001 l
Package weight1 kg
Base uniteach
Package units1
Package contents–
BrandENSTO
VendorENSTO FINLAND OY
The country of origin stated by the supplierFinland
Documents (1)
Links
Environment and safety
Features
Fully recyclable packagingRecyclable
Cr (VI) freeYes
