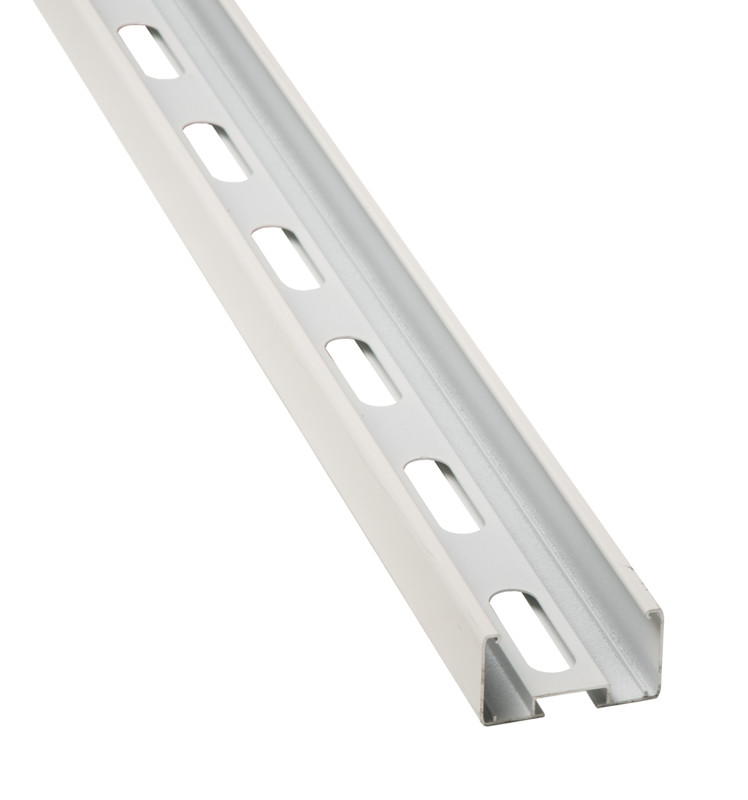

LIGHTING RAIL, WHITE XYRV108M-3

Product code
1441252
SYSTEMAL Presto light rails are made of lightweight but rigid aluminum profile. They offer excellent load-bearing capacity even over long support spans when mounting heavier luminaires. The rail perforation (21 x 70 mm) allows passage of connectors (EnstoNet, Winsta, Gesis, AC 164, etc.). Light rail suspensions are manufactured in two load-bearing types, M (height 44 mm) and K (height 60 mm), with widths of 66 mm, 80 mm, and 120 mm. Special dimensions are also available at an additional cost, as well as anodized or painted in any desired RAL color for demanding conditions. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Cable tray (EC000047)
Height44 mm
Width80 mm
Material thickness1.5 mm
Length6000 mm
Usable cross section3500 mm²
With coverno
Side perforationno
Bottom perforationyes
ModelWithout connector
MaterialAluminium
Material qualityOther
Surface protectionUntreated
ColourWhite
RAL-number9010
Weight0.751 kg/m

Product codes

SAPACC701
STK1441252
PLC1441252
GTIN/EAN6438269328193
Manufacturer part numberSYS-XYRV108M-3
Vendor material number1441252

Basic information

Package measurements (L x W x H)6000 x 0 x 0 mm
Package volume3.64 l
Package weight0.467 kg
Base unitMeter
Package units6 / 60
Package contents
UNSPSC39131705
BrandENSTO
VendorLEGRAND FINLAND -SYSTEMAL OY
