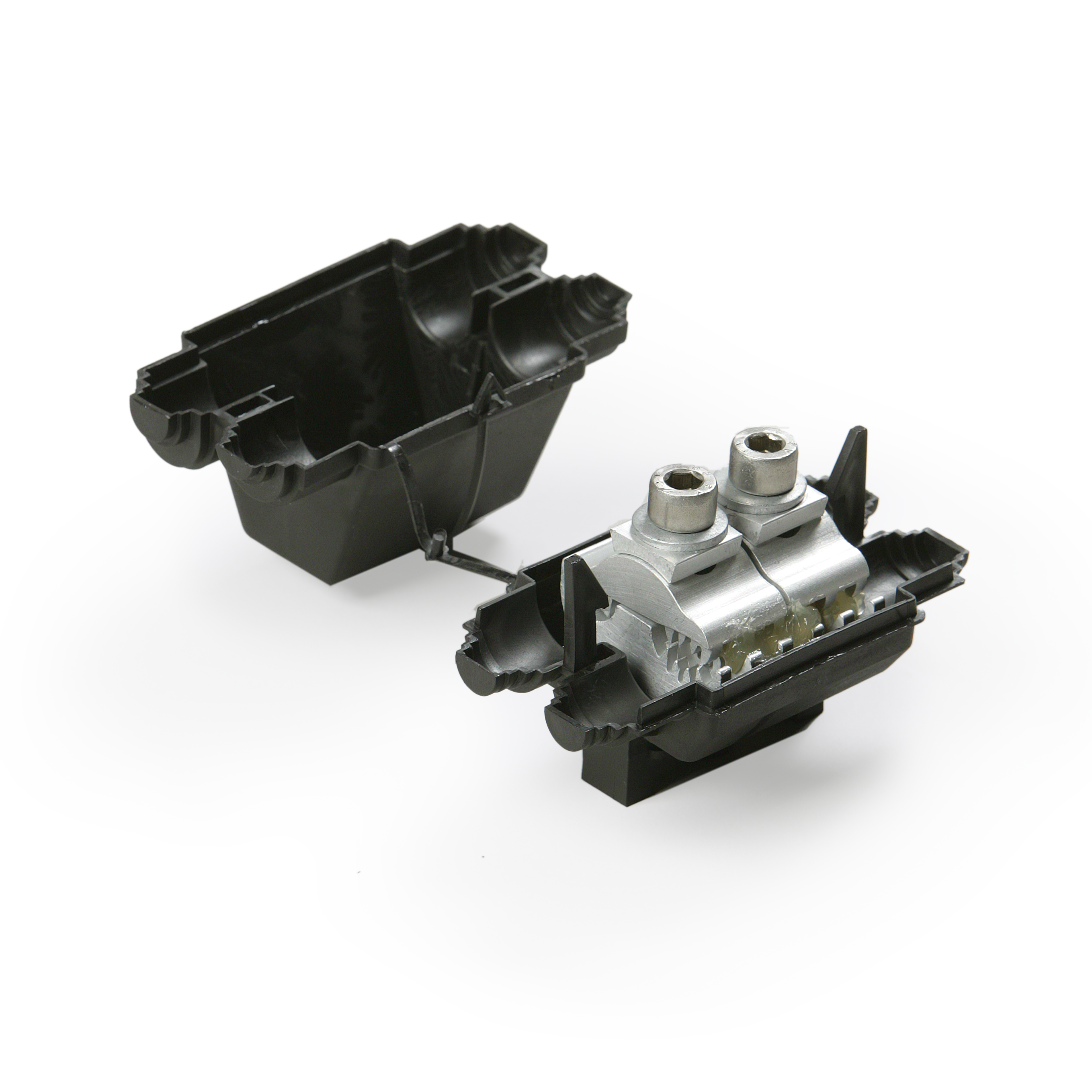

PENETRATION COUPLING SL 9.21 AL 16-120/16-95 A
Product code
5043290
Al 16-120 mm² and Al 16-95 mm²
SL9.21 is used for aluminum-to-aluminum connections. The connector is equipped with stainless steel springs to make installation as easy as possible. The connector's design allows it to fit into terminated installations without requiring the removal of the insulation from the connected wire. Hex socket screw. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Branch terminal (EC001062)
Nominal cross section main conductor, SE16 - 120 mm²
Nominal cross section main conductor, SM16 - 120 mm²
Nominal cross section branch conductor, SE/RE16 - 95 mm²
Nominal cross section branch conductor, SM/RM16 - 95 mm²
Material main conductorAluminium
Material branch conductorAluminium
Terminal insulatedyes
Clamping channel opening main conductorClosed
Clamping channel opening branch conductorClosed
Surface protectionBare
Type of connectionInsulation piercing connector IPC
Product codes
SAPAAK185
STK5043290
PLC5043290
GTIN/EAN6418677403828
Manufacturer part numberSL9.21
Vendor material number5043290
Basic information
Package measurements (L x W x H)110 x 59.1 x 71.5 mm
Package volume0.475 l
Package weight0.167 kg
Base uniteach
Package units50
Package contents–
UNSPSC26121538
BrandENSTO
VendorENSTO FINLAND OY
The country of origin stated by the supplierFinland
Documents (4)
Environment and safety
Features
Fully recyclable packagingRecyclable
Cr (VI) freeYes
