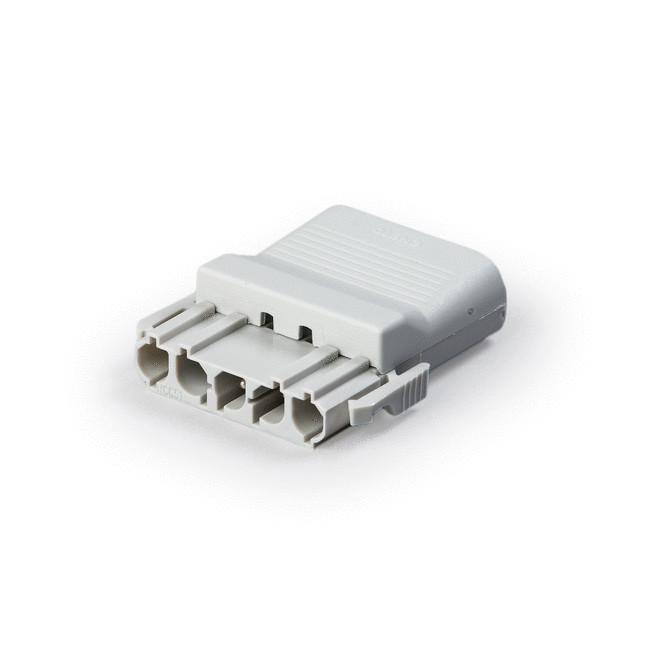

PLUG CONNECTOR ENSTONET 5-POLE MALE GREY
Product code
1934858
5-pin connectors
Installation pin connectors are intended for use indoors, e.g., with prefabricated building elements, installation cavities, cable racks, and conduit systems. Screw pin connectors are suitable for all cable types (fine-stranded, multi-stranded, and single-stranded). Models equipped with strain relief are intended for intermediate and device cables. Connectors without strain relief are suitable for enclosures and internal device connections. We recommend using terminal sleeves for fine-stranded wires. This product description is an automated translation of the original Finnish description.
Installation pin connectors are intended for use indoors, e.g., with prefabricated building elements, installation cavities, cable racks, and conduit systems. Screw pin connectors are suitable for all cable types (fine-stranded, multi-stranded, and single-stranded). Models equipped with strain relief are intended for intermediate and device cables. Connectors without strain relief are suitable for enclosures and internal device connections. We recommend using terminal sleeves for fine-stranded wires. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Plug-in connector for plug-in building installation (EC002560)
ModelPlug
Rated voltage400 V
Rated current20 A
Number of poles5
Degree of protection (IP)IP20
Connection typeScrew connection
Cable diameter6.5-14.5 mm
Connection cross section (fine-strand)0.75-4 mm²
Connection cross section (solid-core)0.75-4 mm²
Number of connections per pole1
Mechanical codingyes
Colour coding/contact insertGrey
Type of lockingIntegrated in plug-in connector
With strain reliefyes
Max. continuous temperature resistance contact part70 °C
Product codes
SAPCMH711
HPACCMH711
STK1934858
PLC1934858
GTIN/EAN6418677117497
Manufacturer part numberNCC51S.G
Vendor material number1934858
Basic information
Package measurements (L x W x H)385 x 260 x 130 mm
Package volume13.013 l
Package weight0.025 kg
Base uniteach
Package units1 / 6300
Package contents–
UNSPSC39121421
BrandENSTO
VendorLEGRAND FINLAND OY
The country of origin stated by the supplierFinland
Documents (3)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)0.1783
