PLUG-IN FROST PROTECTION PLUGN HEAT15
Product code
8168435
Enston Plug'n Heat freeze protection cable

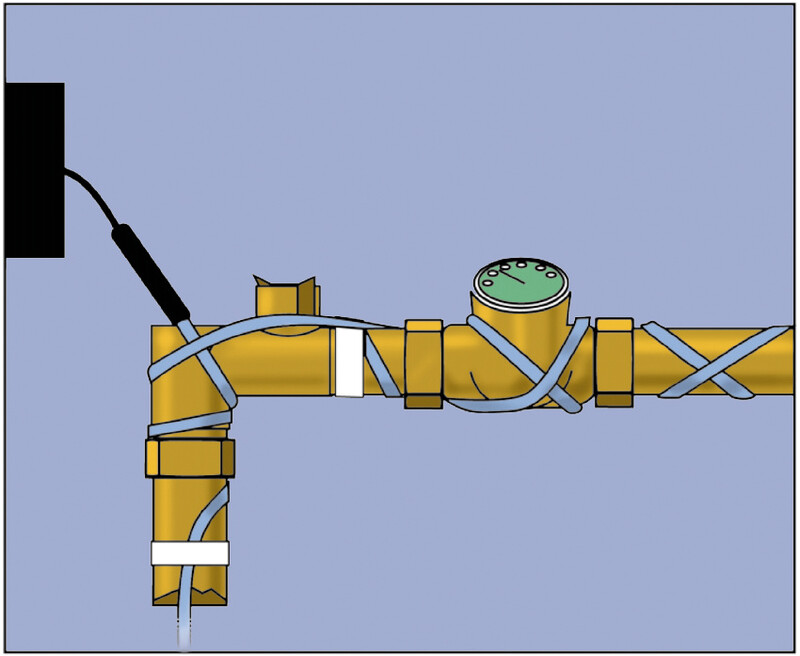

Plug-in freeze protection cable for preventing freezing of pipes, water meters, and other frost-sensitive components. The heating cable is self-regulating, so a thermostat is not required, but its use is recommended.

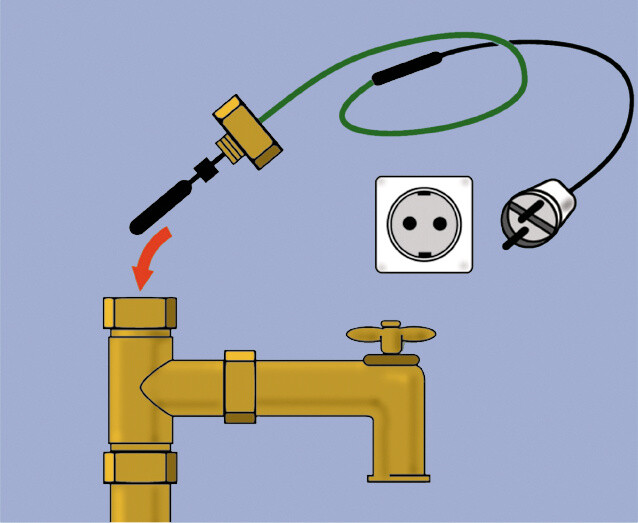

Can also be installed inside drinking water pipes. Rated voltage 230 V. Power output 10 W/m. Cable connection length 2.5 m. IP68.
- height: 5.35,3
- width: 7.7
- length: 15
- maximum holding temperature: 65
- heating capacity: 10
- color: blue
Product details
Technical specifications
Product class (ETIM)Trace heating cable (EC000339)
Self-limitingyes
Nominal voltage230 V
Max. hold temperature65 °C
Heating capacity10 W/m
ScreeningNone
Height5.3 mm
Width7.7 mm
Length15 m
ColourBlue
ApplicationOther
Product codes
SAPABM301
STK8168435
PLC8168435
GTIN/EAN6410081684350
Manufacturer part numberEFPPH15
Vendor material number8168435
Basic information
Package measurements (L x W x H)275 x 270 x 95 mm
Package volume7.054 l
Package weight1.285 kg
Base uniteach
Package units1 / 120
Package contents–
UNSPSC40101851
BrandENSTO
VendorLEGRAND FINLAND OY
The country of origin stated by the supplierFinland
