PLUG-IN FROST PROTECTION PLUGN HEAT6
Product code
8168426

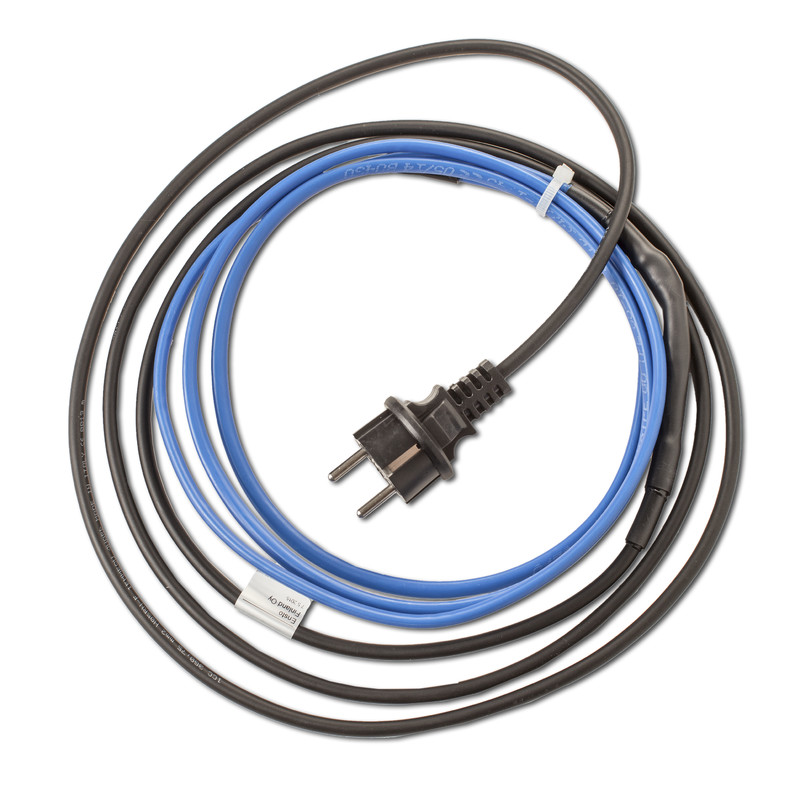

Enston Plug'n Heat freeze protection cable

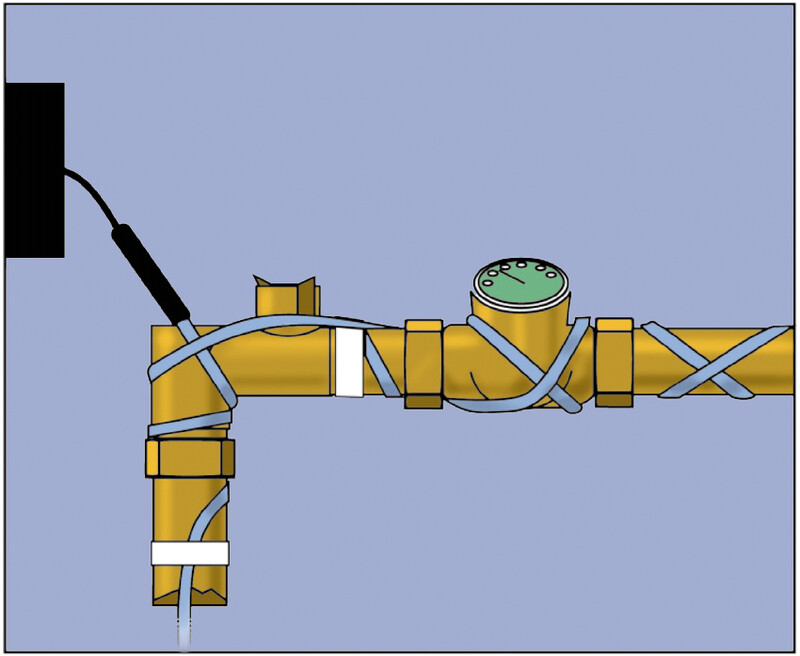

Plug-in freeze protection cable for preventing freezing of pipes, water meters, and other frost-sensitive components. The heating cable is self-regulating, so a thermostat is not required, but its use is recommended.

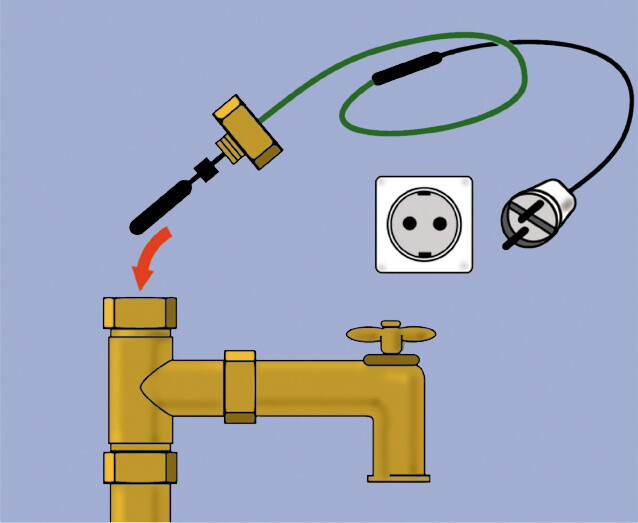

Can also be installed inside drinking water pipes. Rated voltage 230 V. Power output 10 W/m. Connection cable length 2.5 m. IP68.
- height: 5.35.3
- width: 7.7
- length: 6
- maximum holding temperature: 65
- heating capacity: 10
- color: blue
Product details
Technical specifications
Product class (ETIM)Trace heating cable (EC000339)
Self-limitingyes
Nominal voltage230 V
Max. hold temperature65 °C
Heating capacity10 W/m
ScreeningNone
Height5.3 mm
Width7.7 mm
Length6 m
ColourBlue
ApplicationOther
Product codes
SAPABM299
STK8168426
PLC8168426
GTIN/EAN6410081684268
Manufacturer part numberEFPPH6
Vendor material number8168426
Basic information
Package measurements (L x W x H)275 x 270 x 90 mm
Package volume6.683 l
Package weight0.776 kg
Base uniteach
Package units1 / 120
Package contents–
UNSPSC40101851
BrandENSTO
VendorLEGRAND FINLAND OY
The country of origin stated by the supplierFinland
