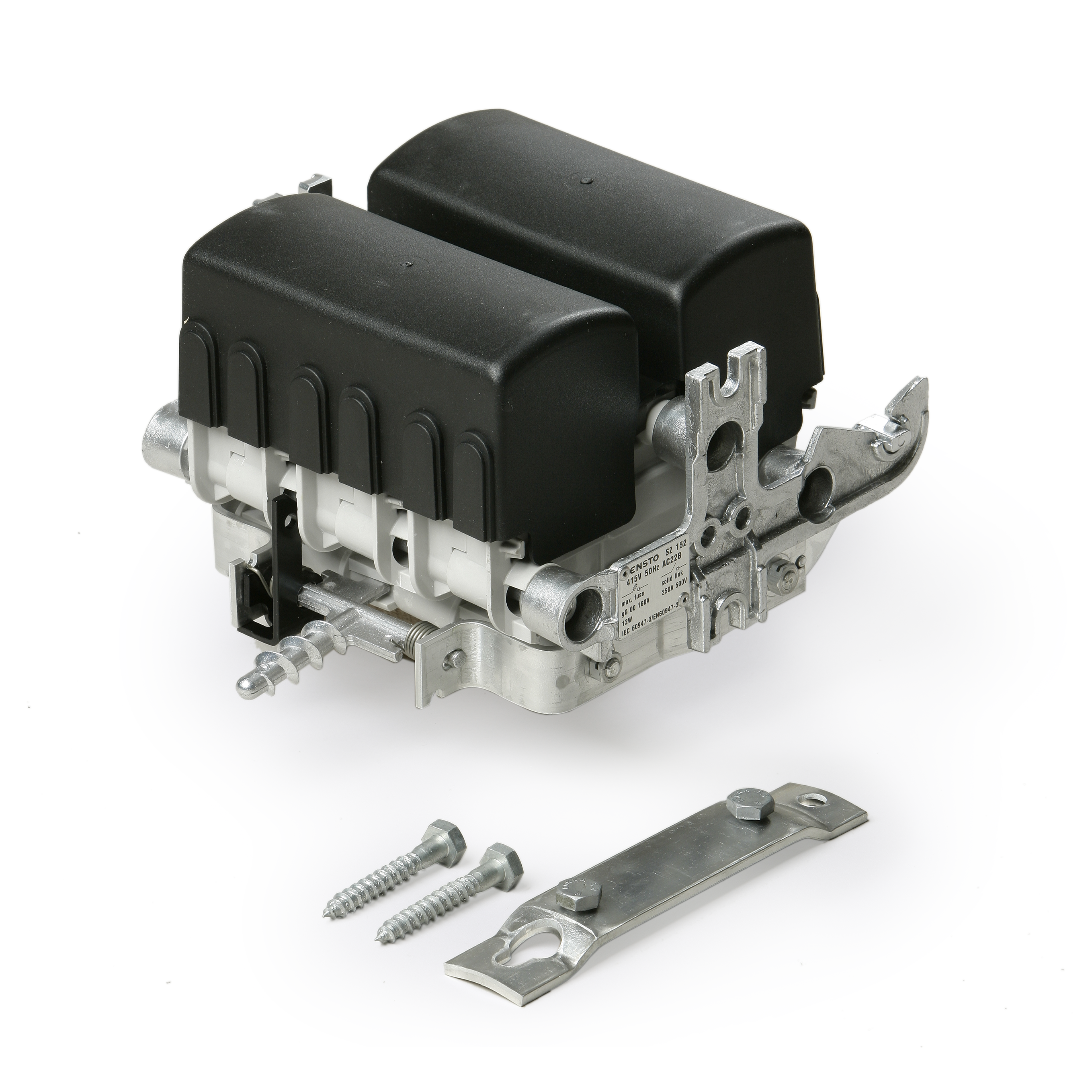

POLE FUSE SWITCHES SZ 152 160A
Product code
5800508
Al 2x(16-120) mm², poles 3
Column-type fuse switches
Used in low-voltage outputs of column transformers, as main fuse, intermediate fuse, or connection line fuse This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Fuse switch disconnector (EC001040)
Version as main switchyes
Version as safety switchyes
Max. rated operation voltage Ue AC415 V
Rated permanent current Iu160 A
Suitable for fusesNH00
Number of poles3
Type of electrical connection of main circuitCable clamp
Cable entrySide
Equipped with connectorsyes
Suitable for ground mountingno
Suitable for front mounting 4-holeno
Suitable for busbar mountingno
Type of control elementLong rotary handle
Motor drive optionalno
Motor drive integratedno
Product codes
SAPABA561
STK5800508
PLC5800508
GTIN/EAN6418677405891
Manufacturer part numberSZ152
Vendor material number5800508
Basic information
Package measurements (L x W x H)280 x 275 x 175 mm
Package volume13.475 l
Package weight4.38 kg
Base uniteach
Package units1 / 48
Package contents–
UNSPSC39121617
BrandENSTO
VendorENSTO FINLAND OY
The country of origin stated by the supplierFinland
Documents (3)
Environment and safety
Features
Fully recyclable packagingRecyclable
Cr (VI) freeYes
