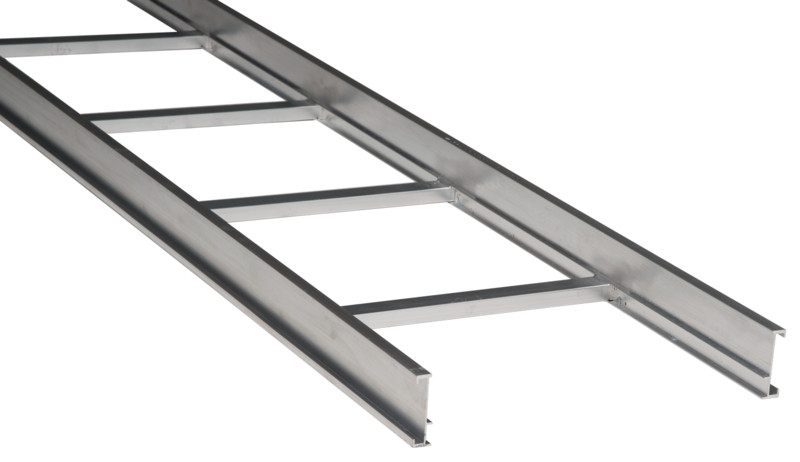

SHELVE SYSTEMAL 0 LH050 AL 500x56x6000
Product code
1441610
Ensto SYSTEMAL cable tray and lighting rail system is ideally suited for a wide variety of applications and purposes. Its robust aluminum structure is designed to withstand time and stress. No additional corrosion protection or maintenance measures are required. Aluminum is three times lighter than steel, making handling easier. The coating does not peel during processing, and cut edges do not need protection. Processing does not produce sparks, and the material is easily recyclable. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Cable ladder (EC000854)
Type of side joistFlat profile
Side perforationno
Type of rungImperforated profile
Fixation rungWelded
Height56 mm
Width520 mm
Length6000 mm
Working length6000 mm
Usable cross section19600 mm²
Suitable for circuit integrityno
Rung centre spacing300 mm
Vertical cable ladderno
MaterialAluminium
Material qualityOther
Operating temperature-40-120 °C
Product codes
SAPABB043
STK1441610
PLC1441610
GTIN/EAN6438269328742
Manufacturer part numberSYS-LH050
Vendor material number1441610
Basic information
Package measurements (L x W x H)6000 x 0 x 0 mm
Package volume31.2 l
Package weight1.1 kg
Base unitMeter
Package units6 / 36 / 144
Package contents–
UNSPSC39131703
BrandENSTO
VendorLEGRAND FINLAND -SYSTEMAL OY
The country of origin stated by the supplierFinland
Documents (7)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)3.52
GWP, unitMeter
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000001046
