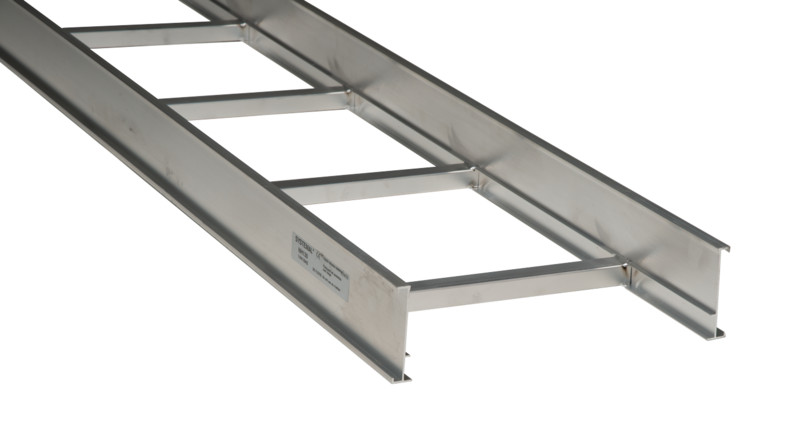

SHELVE SYSTEMAL 1 NH130 AL 300x85x6000
Product code
1441614
Cable rack series designed for standard cable loads. Suitable for support spans of up to 5 m. Extremely lightweight to handle. Stronger pair profile used in shelf widths of 400-600 mm. Best suited for mid and wall support as well as portal suspension for series 1 racks. Minimum increment is 300 mm. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Cable ladder (EC000854)
Type of side joistFlat profile
Side perforationno
Type of rungImperforated profile
Fixation rungWelded
Height84 mm
Width322 mm
Length6000 mm
Working length6000 mm
Usable cross section11760 mm²
Suitable for circuit integrityno
Rung centre spacing300 mm
Vertical cable ladderno
MaterialAluminium
Material qualityEN AW-6060 T5(AlMgSi)
Operating temperature-40-120 °C
Product codes
SAPABB046
STK1441614
PLC1441614
GTIN/EAN6438269328773
Manufacturer part numberSYS-NH130
Vendor material number1441614
Basic information
Package measurements (L x W x H)6000 x 0 x 0 mm
Package volume28.8 l
Package weight1.217 kg
Base unitMeter
Package units6 / 36 / 324
Package contents–
UNSPSC39131703
BrandENSTO
VendorLEGRAND FINLAND -SYSTEMAL OY
The country of origin stated by the supplierFinland
Documents (5)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)3.8944
GWP, unitMeter
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000001046
