SHELVE SYSTEMAL 1 NH140 AL 400x85x6000
Product code
1441615

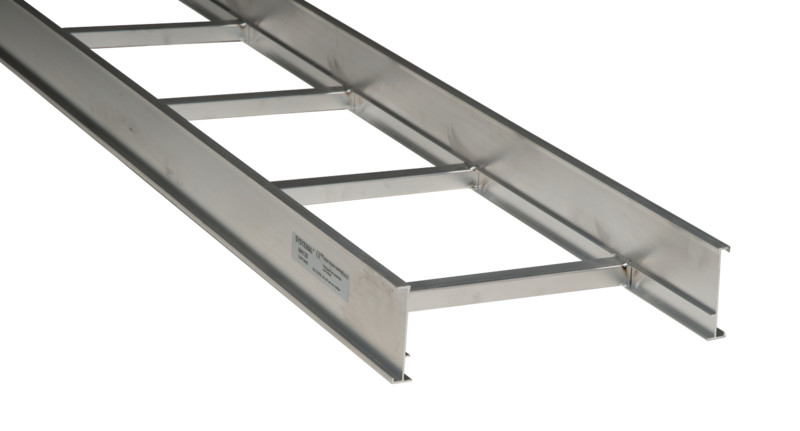

Systemal Presto Aluminum 1-series cable tray
Designed for industrial installations and standard cable loads with a support span of up to 5m. Wider trays, 400–600mm, use a stronger pair profile than narrower trays. The 1-series trays are best suited for mid-span and wall mounting as well as portal supports. Spacing 300mm. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Cable ladder (EC000854)
Type of side joistFlat profile
Side perforationno
Type of rungImperforated profile
Fixation rungWelded
Height85 mm
Width424 mm
Length6000 mm
Working length6000 mm
Usable cross section15680 mm²
Suitable for circuit integrityno
Rung centre spacing300 mm
Vertical cable ladderno
MaterialAluminium
Material qualityOther
Operating temperature-40-120 °C
Product codes
SAPABB047
STK1441615
PLC1441615
GTIN/EAN6438269328780
Manufacturer part numberSYS-NH140
Vendor material number1441615
Basic information
Package measurements (L x W x H)6000 x 0 x 0 mm
Package volume37.8 l
Package weight1.3 kg
Base unitMeter
Package units6 / 36 / 144
Package contents–
UNSPSC39131703
BrandENSTO
VendorLEGRAND FINLAND -SYSTEMAL OY
The country of origin stated by the supplierFinland
Documents (6)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)4.16
GWP, unitMeter
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000001046
