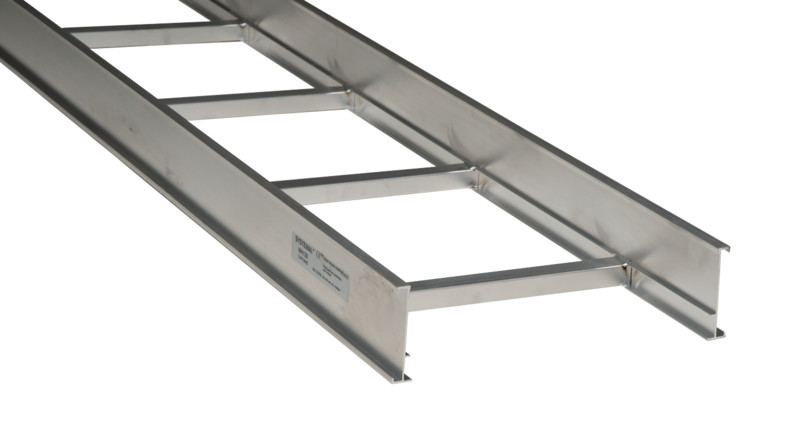

SHELVE SYSTEMAL 1 NH150 AL 500x85x6000
Product code
1441616
Cable rack series designed for standard cable loads. Suitable for support spans of up to 5 m. Extremely lightweight to handle. In shelf widths of 400-600 mm, a stronger pair profile is used. Best suited for mid and wall supports as well as portal brackets for 1-series racks. Minimum increment is 300 mm. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Cable ladder (EC000854)
Type of side joistFlat profile
Side perforationno
Type of rungImperforated profile
Fixation rungWelded
Height85 mm
Width524 mm
Length6000 mm
Working length6000 mm
Usable cross section19600 mm²
Suitable for circuit integrityno
Rung centre spacing300 mm
Vertical cable ladderno
MaterialAluminium
Material qualityEN AW-6060 T5(AlMgSi)
Operating temperature-40-120 °C
Product codes
SAPABB048
STK1441616
PLC1441616
GTIN/EAN6438269328797
Manufacturer part numberSYS-NH150
Vendor material number1441616
Basic information
Package measurements (L x W x H)1000 x 524 x 85 mm
Package volume44.54 l
Package weight1.575 kg
Base unitMeter
Package units6 / 36 / 288
Package contents–
UNSPSC39131703
BrandENSTO
VendorLEGRAND FINLAND -SYSTEMAL OY
The country of origin stated by the supplierFinland
Documents (5)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)5.04
GWP, unitMeter
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000001046
