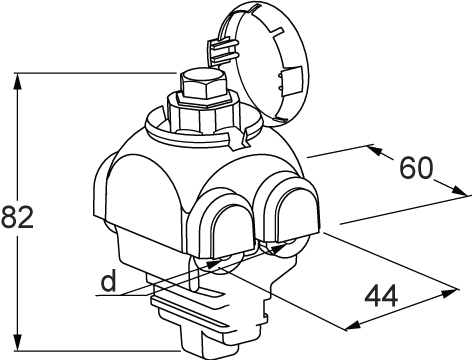

SLIP22.1 INSULATION PIERCING CONNECTOR
Product code
5043222
(Al 10-95 mm² or Cu 1.5-70 mm²) to (Al 10-95 mm² or Cu 1.5-70 mm²)
The metallic torque base ensures the correct tightening torque. The base is electrically insulated from the components. The toothed parts are tin-plated aluminum, so the connector is suitable for Al/Al, Al/Cu, and Cu/Cu connections. The teeth are at the same electrical potential. The teeth do not damage the conductor strands. The connector is suitable for tensioning work. The insulation's permeability functions in freezing temperatures (-20°C). This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Branch terminal (EC001062)
Nominal cross section main conductor, SE10-95 mm²
Nominal cross section main conductor, SM10-95 mm²
Nominal cross section branch conductor, SE/RE1.5-70 mm²
Nominal cross section branch conductor, SM/RM1.5-70 mm²
Material main conductorAluminium/copper
Material branch conductorAluminium/copper
Terminal insulatedyes
Clamping channel opening main conductorClosed
Clamping channel opening branch conductorClosed
Surface protectionTinned
Type of connectionInsulation piercing connector IPC
Product codes
SAPABE365
STK5043222
PLC5043222
GTIN/EAN6418677403842
Manufacturer part numberSLIP22.1
Vendor material number5043222
Basic information
Package measurements (L x W x H)63 x 53 x 82 mm
Package volume0.274 l
Package weight0.116 kg
Base uniteach
Package units1 / 50
Package contents–
UNSPSC39121717
BrandENSTO
VendorENSTO FINLAND OY
Documents (7)
Brochures & documents
Links
Environment and safety
Features
Fully recyclable packagingRecyclable
Cr (VI) freeYes
