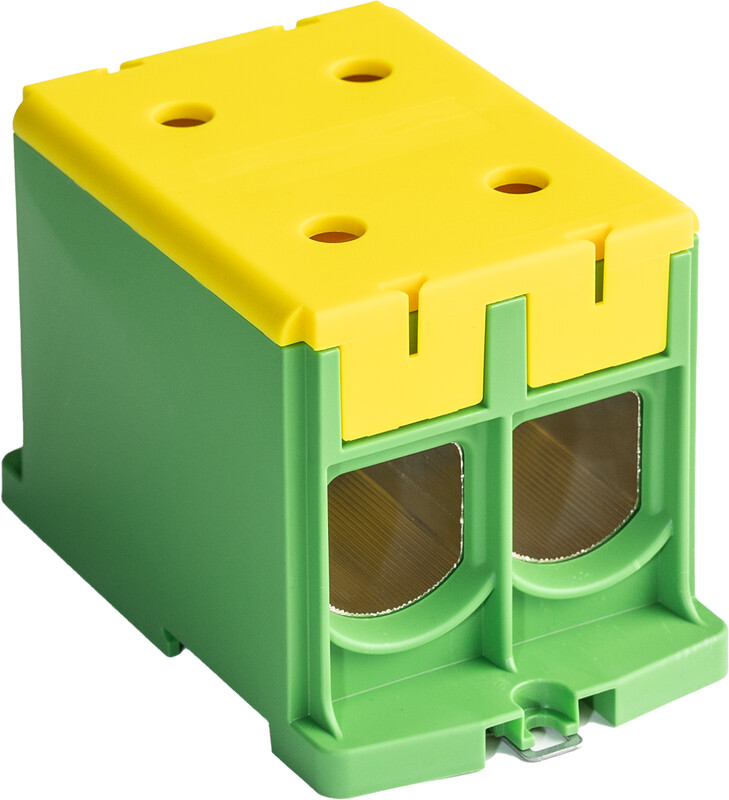

TAPPING CONNECTOR CLAMPO PRO Y/G, AL/CU 95-300 mm2
Product code
1913160
Ensto Clampo Pro is a comprehensive general clamp series suitable for aluminum and copper conductors ranging from 1.5 to 300 mm². This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Feed-through terminal block (EC000897)
Connectable conductor cross section fine-strand without cable end sleeve95-240 mm²
Connectable conductor cross section fine-strand with cable end sleeve95-240 mm²
Connectable conductor cross section multi-wired95-300 mm²
Rated current In1040 A
Rated voltage1000 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level4
Mounting methodDirect mounting
Material insulation bodyThermoplastic
Operating temperature-5-80 °C
Width78 mm
Height81 mm
Depth130 mm
Product codes
SAPDAY788
STK1913160
PLC1913160
GTIN/EAN6438100508333
Manufacturer part numberKE70.3
Vendor material number1913160
Basic information
Package measurements (L x W x H)130 x 81 x 78 mm
Package volume0.985 l
Package weight0.727 kg
Base uniteach
Package units30 / 960
Package contents–
UNSPSC39121421
BrandENSTO
VendorLEGRAND FINLAND OY
Documents (2)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)9.9756
GWP, uniteach
Source for GWP dataEPD
Documents (1)
Sustainability brochures & documents
