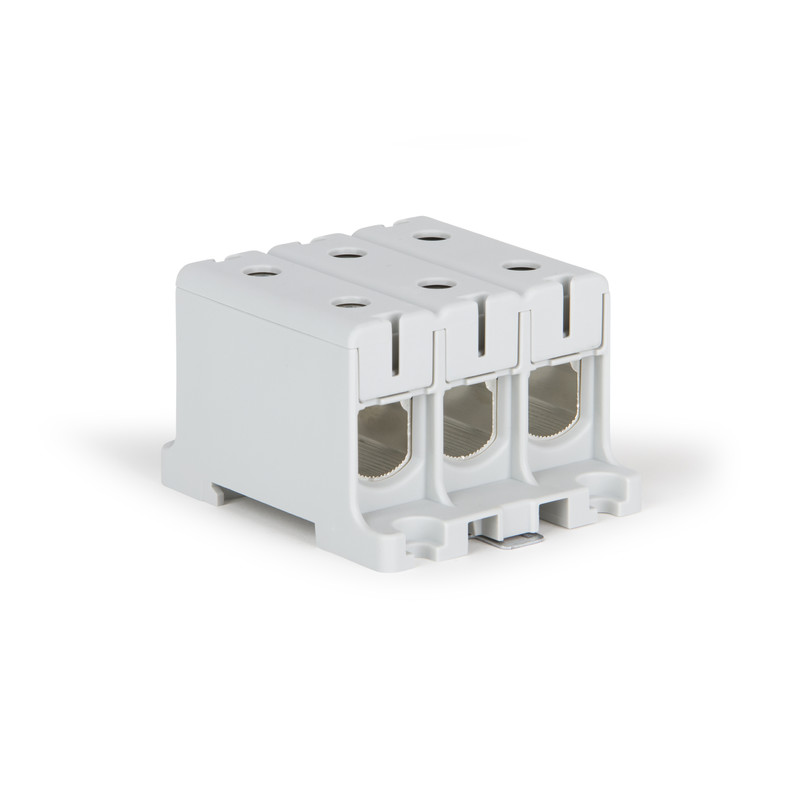

TERMINAL BLOCK ENSTO 3-POLE 16-95 MM2 AL/CU, GREY
Product code
1933000
Three-pole common connector, gray, Al/Cu 16-95 mm² This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Feed-through terminal block (EC000897)
Connectable conductor cross section fine-strand without cable end sleeve16-70 mm²
Connectable conductor cross section fine-strand with cable end sleeve16-70 mm²
Connectable conductor cross section multi-wired16-95 mm²
Rated current In220 A
Rated voltage800 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level2
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-5-80 °C
Explosion-tested version 'Ex e'no
ColourGrey
Product codes
SAPCKY490
STK1933000
PLC1933000
GTIN/EAN6438100347451
Manufacturer part numberKE62.03
Vendor material number1933000
Basic information
Package measurements (L x W x H)49 x 69 x 86 mm
Package volume0.291 l
Package weight0.222 kg
Base uniteach
Package units30 / 1080
Package contents–
UNSPSC39121421
BrandENSTO
VendorLEGRAND FINLAND OY
