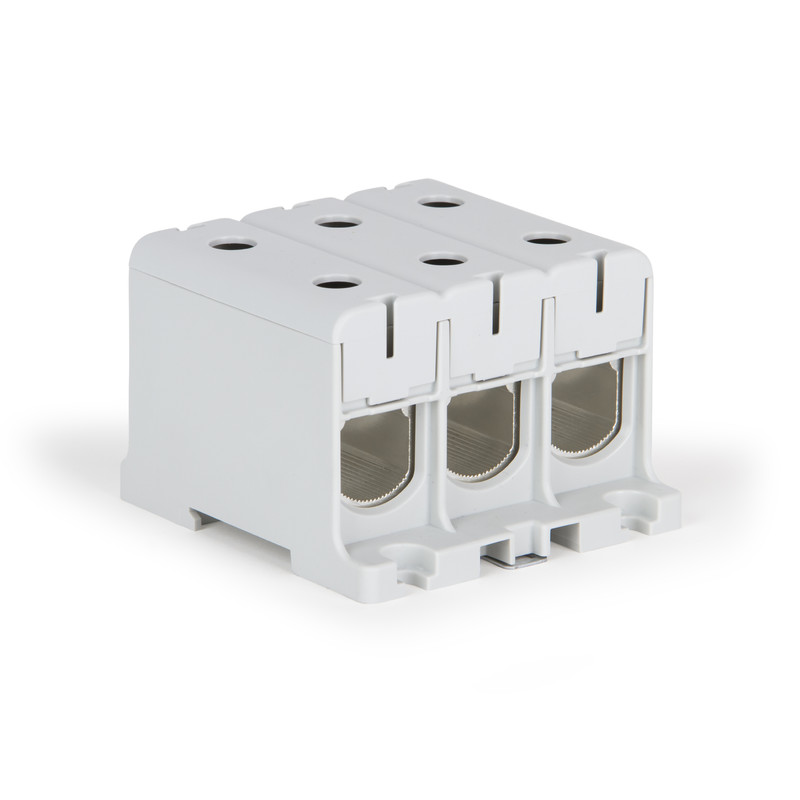

TERMINAL BLOCK ENSTO 3-POLE 35-150 MM2 AL/CU, GREY
Product code
1933003
Three-pole common connector, gray, Al/Cu 16-95 mm² This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Feed-through terminal block (EC000897)
Connectable conductor cross section fine-strand without cable end sleeve35-120 mm²
Connectable conductor cross section fine-strand with cable end sleeve35-120 mm²
Connectable conductor cross section multi-wired35-150 mm²
Rated current In290 A
Rated voltage800 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level2
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-5-80 °C
Explosion-tested version 'Ex e'no
ColourGrey
Product codes
SAPCKY491
STK1933003
PLC1933003
GTIN/EAN6438100347468
Manufacturer part numberKE63.03
Vendor material number1933003
Basic information
Package measurements (L x W x H)59 x 85 x 96 mm
Package volume0.481 l
Package weight0.3 kg
Base uniteach
Package units30 / 720
Package contents–
UNSPSC39121421
BrandENSTO
VendorLEGRAND FINLAND OY
Documents (7)
Certificates
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)3.4675
GWP, uniteach
Source for GWP dataEPD
