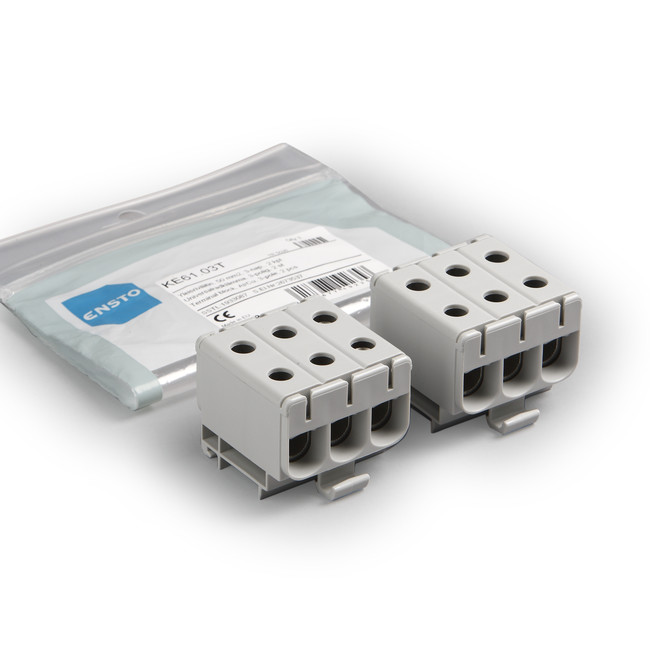

UNIVERSAL TERMINAL BLOCK KE61.03T 3P 2.5-50MM2 GR 2PCS
Product code
1933087
2 x KE61.03 grey, 3-pole, Al 6-50 mm², Cu 2.5-50 mm²
Ensto Clampo Pro is a comprehensive general connector range suitable for aluminum and copper conductors of 2.5 to 240 mm². This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Feed-through terminal block (EC000897)
Connectable conductor cross section fine-strand without cable end sleeve2.5-35 mm²
Connectable conductor cross section fine-strand with cable end sleeve2.5-35 mm²
Connectable conductor cross section multi-wired2.5-50 mm²
Rated current In145 A
Rated voltage800 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level6
Mounting methodDIN rail (top hat rail) 35 mm
Material insulation bodyThermoplastic
Operating temperature-5-80 °C
Explosion-tested version 'Ex e'no
ColourGrey
Product codes
SAPABP922
STK1933087
PLC1933087
GTIN/EAN6418677192357
Manufacturer part numberKE61.03T
Vendor material number1933087
Basic information
Package measurements (L x W x H)98 x 50 x 45 mm
Package volume0.221 l
Package weight0.165 kg
Base unitBag
Package units1 / 15
Package contents2 each
UNSPSC39121421
BrandENSTO
VendorLEGRAND FINLAND OY
The country of origin stated by the supplierFinland
