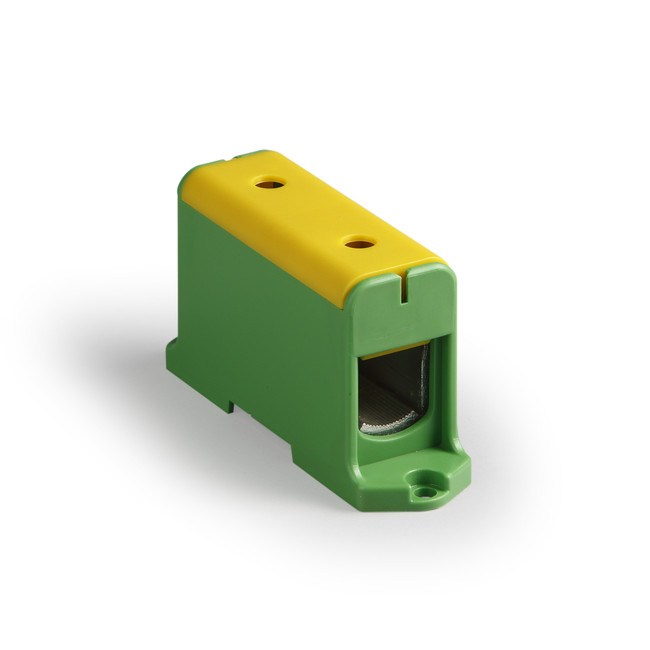

UNIVERSAL TERMINAL BLOCK KE64.3 35-240MM2, YEGR
Product code
1933073
1-pole, yellow/green, Al/Cu 35-240 mm²
Ensto Clampo Pro is a comprehensive general clamp series suitable for aluminum and copper conductors of 2.5 to 240 mm². This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Feed-through terminal block (EC000897)
Connectable conductor cross section fine-strand without cable end sleeve35-185 mm²
Connectable conductor cross section fine-strand with cable end sleeve35-185 mm²
Connectable conductor cross section multi-wired35-240 mm²
Rated voltage800 V
Type of electrical connection 1Screw connection
Type of electrical connection 2Screw connection
Number of levels1
Number of clamp positions per level2
Mounting methodDirect mounting
Material insulation bodyThermoplastic
Operating temperature-5-80 °C
Explosion-tested version 'Ex e'no
ColourGreen/yellow
Product codes
SAPABP932
STK1933073
PLC1933073
GTIN/EAN6418677191930
Manufacturer part numberKE64.3
Vendor material number1933073
Basic information
Package measurements (L x W x H)130 x 38 x 67 mm
Package volume0.33 l
Package weight0.25 kg
Base uniteach
Package units1 / 30
Package contents–
UNSPSC39121410
BrandENSTO
VendorLEGRAND FINLAND OY
The country of origin stated by the supplierFinland
