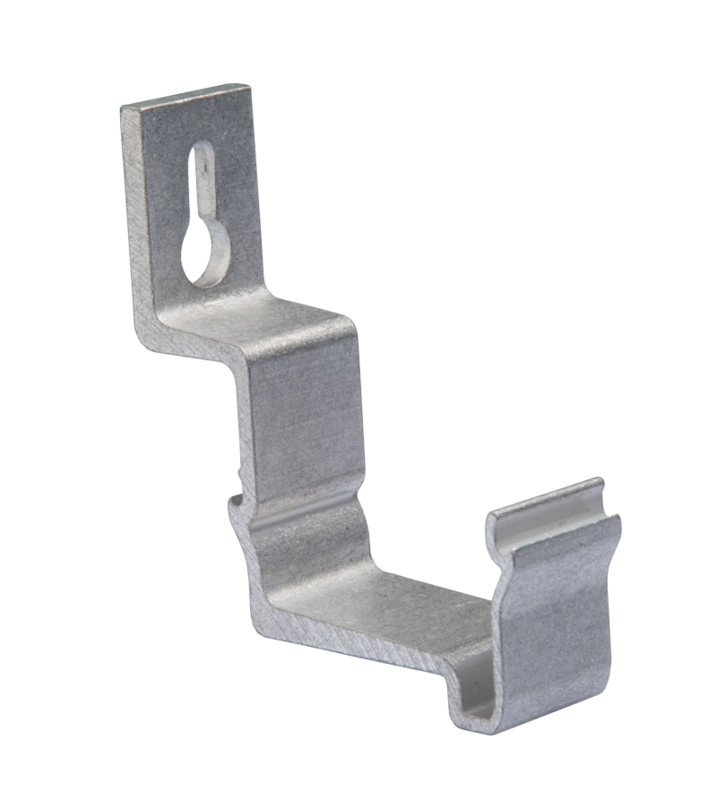

WALL BRACKET XYRV2108

Product code
1441231
SYSTEMAL Presto lighting rails are aluminum profiles. The rails allow for easy and rapid installation of both lighting fixtures and low-power electrical devices. The perforation of the lighting rails (21 x 70 mm) is designed for example for 3- and 5-pole connectors of the EnstoNet installation system. The rail width, long support spans, and additional accessories enable cost-effective installation. Aluminum SYSTEMAL Presto lighting rails are manufactured in two different load-bearing types: M (height 44 mm) and K (height 60 mm). Each rail type is available in three different widths: 66, 80, and 120 mm. The standard delivery length is 6 meters. Standard lighting rails are delivered either as bare or painted RAL 9010 (white); upon order, the rails can also be painted in other RAL colors. This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Bracket for cable support system (EC000022)
Length72 mm
Width30 mm
Height109 mm
Suitable for cable support system width80-80 mm
ModelWall bracket
Safe working load according to IEC 61537971 N
Suitable for circuit integrityno
MaterialAluminium
Material qualityOther
Surface protectionOther
Operating temperature-40-120 °C
ColourOther
RAL-number0

Product codes

SAPAEO479
STK1441231
PLC1441231
GTIN/EAN6438269328131
Manufacturer part numberSYS-XYRV2108
Vendor material number1441231

Basic information

Package measurements (L x W x H)30 x 95 x 109 mm
Package volume0.311 l
Package weight0.09 kg
Base uniteach
Package units10
Package contents
UNSPSC39131705
BrandENSTO
VendorLEGRAND FINLAND -SYSTEMAL OY
The country of origin stated by the supplierFinland
