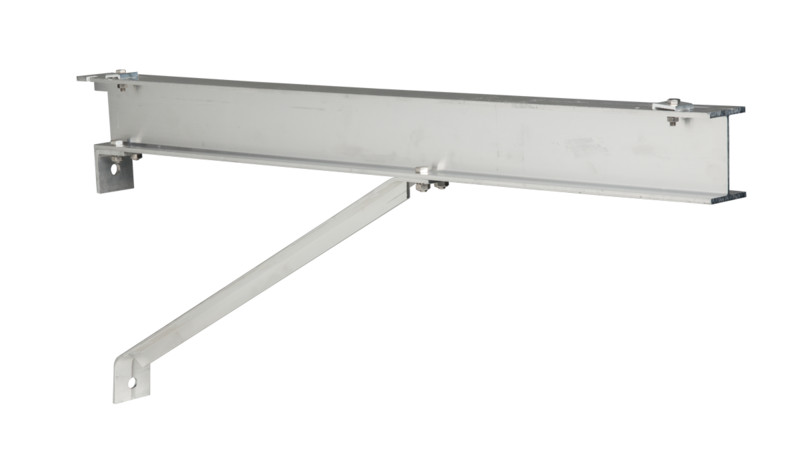

WALL BRACKET 3 KN NSP 08 (XYHV 1803)
Product code
1440122
NSP08 Wall bracket 3kN This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Bracket for cable support system (EC000022)
Length890 mm
Width140 mm
Height70 mm
Suitable for cable support system width600-600 mm
ModelWall bracket
Safe working load according to IEC 615373000 N
Suitable for circuit integrityno
MaterialAluminium
Material qualityOther
Surface protectionOther
Operating temperature-40-120 °C
ColourOther
RAL-number0
Product codes
SAPAAD394
STK1440122
PLC1440122
GTIN/EAN6438269326779
Manufacturer part numberSYS-NSP08
Vendor material number1440122
Basic information
Package measurements (L x W x H)890 x 80 x 50 mm
Package volume3.56 l
Package weight2.076 kg
Base uniteach
Package units1
Package contents–
UNSPSC31162506
BrandENSTO
VendorLEGRAND FINLAND -SYSTEMAL OY
The country of origin stated by the supplierFinland
Documents (7)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)6.6432
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000001046
