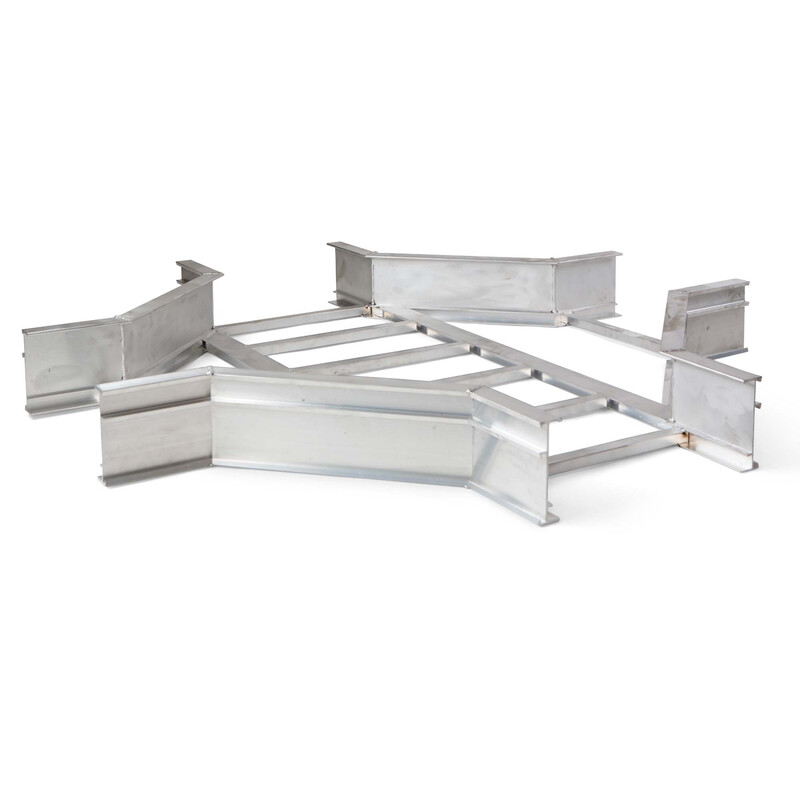

X-PIECE SYSTEMAL PRESTO C4 4-series 400MM AL
Product code
1441677
The SYSTEMAL 4 series aluminum cable shelf is suitable for support spans of up to 10 m. Suitable mounting methods include portal and support rail mounting, as well as direct wall mounting on the wall or on rails. The advantages of aluminum rails compared to steel are lightness, stiffness, fracture strength at extremely low temperatures, and paramagnetism. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Cross piece for cable ladder (EC001559)
Type of side joistProfile (open)
Type of rungImperforated profile
Suitable for cable ladder height106 mm
Suitable for cable ladder width400 mm
Cable ladder branch width400 mm
Inner radius600 mm
Suitable for circuit integrityno
MaterialAluminium
Material qualityOther
Surface protectionUntreated
Operating temperature-40-120 °C
ColourAluminium
Product codes
SAPDLR854
STK1441677
PLC1441677
GTIN/EAN6438269329190
Manufacturer part numberSYS-NX440
Vendor material number1441677
Basic information
Package measurements (L x W x H)1360 x 1360 x 106 mm
Package volume196.058 l
Package weight5.65 kg
Base uniteach
Package units1
Package contents–
UNSPSC39131705
BrandENSTO
VendorLEGRAND FINLAND -SYSTEMAL OY
The country of origin stated by the supplierFinland
Documents (3)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)18.08
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000001046
