WALL BRACKET INTEGRA INTEGRA FIXED 40-100IN

Product code
7914373

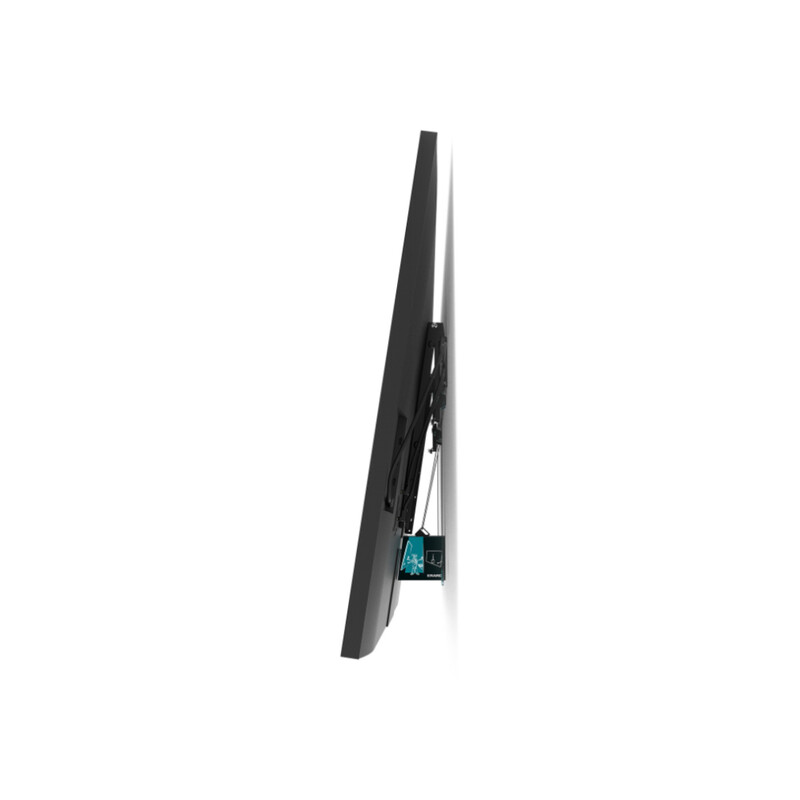

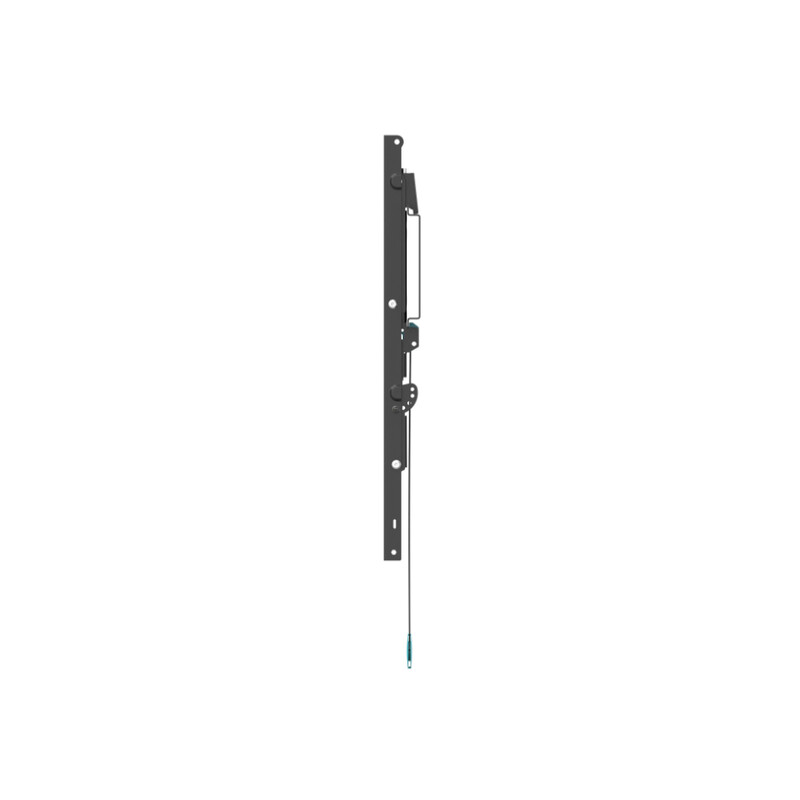

Fixed wall mount for extremely large displays up to 100".
  • Anti-drop safety system

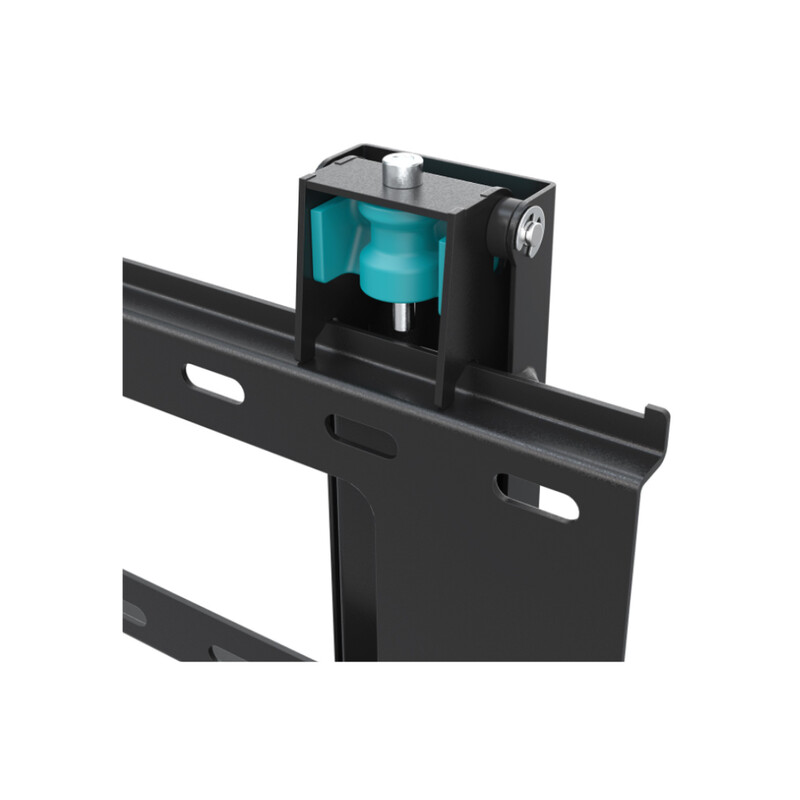

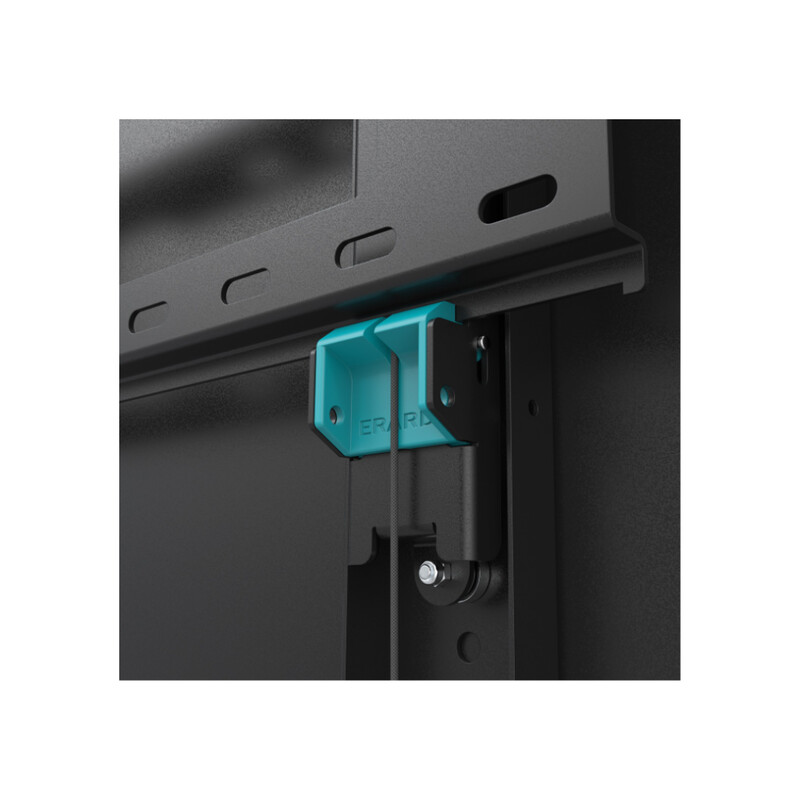

  • Simple solution for locking/unlocking the display (patented)
  • Maintenance position for easy access to the back of the display
  • Display adjustment possible in both vertical and horizontal directions after installation
  • Display position can be adjusted laterally (+/- 75 mm) and vertically (+/- 50 mm)
  • 7 wall mounting points
  • Compatible with all types of displays (LCD, LED, QLED, OLED)
  • TV/display size: 40"-100"
  • Maximum load: 120 kg
  • VESA: 200>600x400
  • Material: Steel, black epoxy coated
This product description is an automated translation of the original Finnish description.

Product details

Technical specifications

Product class (ETIM)Audio-/video support bracket (EC001548)
Suitable forTelevision set
Mounting methodWall
Load bearing capacity120 kg
Mounting Interface Standard (MIS) according to VESAOther
Width750 mm
Height510 mm
Depth45-45 mm
ColourBlack

Product codes

SAPDJC108
STK7914373
PLC7914373
GTIN/EAN3185280460601
Manufacturer part numberINTEGRA600
Vendor material numberINTEGRA600

Basic information

Package measurements (L x W x H)825 x 166 x 76 mm
Package volume10.408 l
Package weight4.375 kg
Base uniteach
Package units1 / 4
Package contents
UNSPSC43221701
BrandERARD
VendorFINNSAT OY
