WALL BRACKET WAM TILT AND SWIVEL FOR 40-80
Product code
7914411

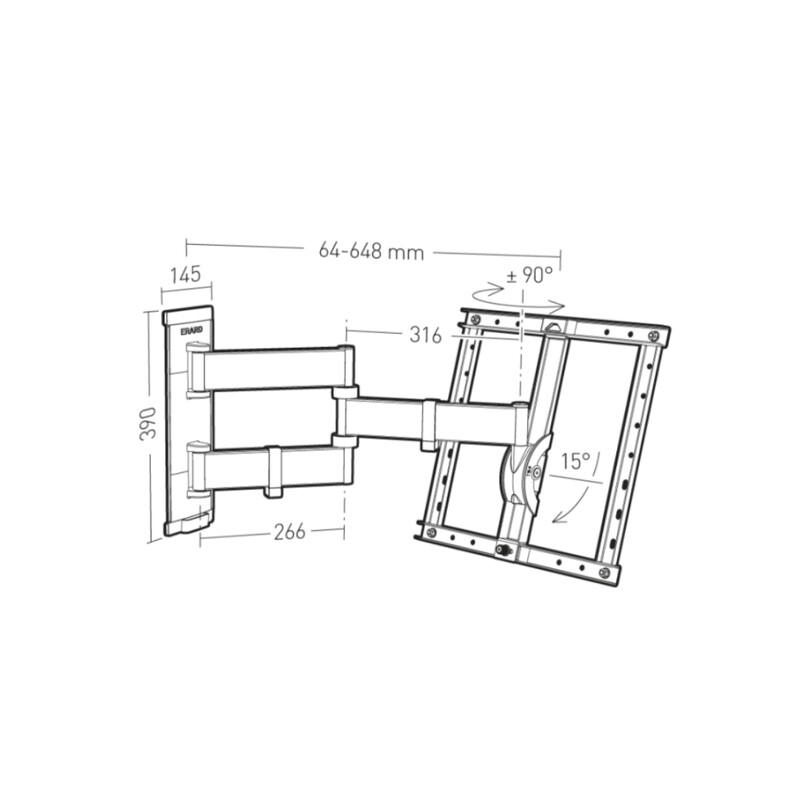

Tilt and swivel wall mount with a 648mm arm for 40"-80" screens.
Features
- Laser-welded steel arm, grey epoxy paint
- Steel wall and screen plates, black epoxy paint
- Three mounting points on the wall plate
- Patented eccentric washer system to correct drilling errors (available in two diameters: 8 mm and 10 mm)
- Clip-on wall panel cover conceals mounting screws and provides a finished look
- Integrated cable management
- Impact-protected
- Compatible with all types of screens (LCD, LED, OLED, QLED, Mini LED…)
- Easy, tool-free tilt adjustment
- Shipped pre-assembled
- Installation on drywall is also possible using the WAMADAPT series
Product details
Technical specifications
Product class (ETIM)Audio-/video support bracket (EC001548)
Suitable forTelevision set
Mounting methodWall
Pivoting range-90 - 90 °
Load bearing capacity35 kg
Mounting Interface Standard (MIS) according to VESAOther
Width400 mm
Height400 mm
Depth64 - 648 mm
Adjustable heightno
ColourBlack
Product codes
SAPDQF467
STK7914411
PLC7914411
GTIN/EAN3185280487400
Manufacturer part numberWAM400TW3
Vendor material numberWAM400TW3
Basic information
Package measurements (L x W x H)578 x 500 x 80 mm
Package volume23.12 l
Package weight9.2 kg
Base uniteach
Package units1 / 2
Package contents–
UNSPSC26121636
BrandERARD
VendorFINNSAT OY
