WALL BRACKET WAM TILT AND SWIVEL FOR 40-80
Product code
7914410
Tilt and swivel wall mount with a 127mm arm for 40"-80" screens.
Features
Laser-welded steel arm, grey epoxy paint
Steel wall and screen plates, black epoxy paint
Wall plate with 3 mounting points
Patented eccentric washer system to correct drilling errors (available in two diameters: 8 mm and 10 mm)
Clip-on wall panel cover conceals mounting screws and provides a finished look
Integrated cable management
Impact-resistant
Compatible with all types of screens (LCD, LED, OLED, QLED, Mini LED...)
Easy, tool-free tilt adjustment
Shipped pre-assembled
Can also be installed on drywall using the WAMADAPT series This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Audio-/video support bracket (EC001548)
Suitable forTelevision set
Mounting methodWall

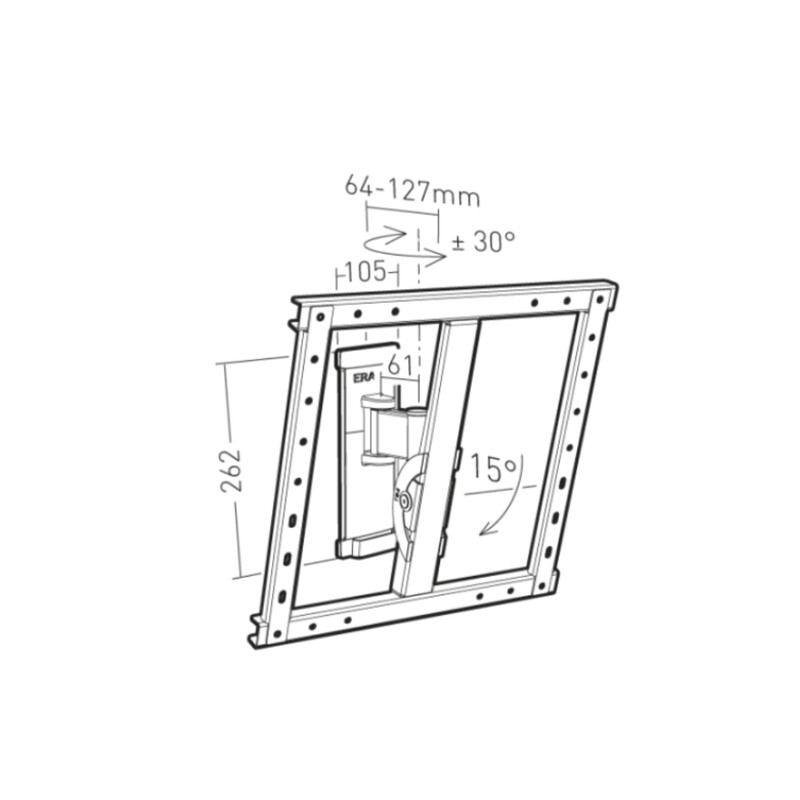

Pivoting range-30 - 30 °
Load bearing capacity35 kg
Mounting Interface Standard (MIS) according to VESAOther
Width400 mm
Height400 mm
Depth64 - 127 mm
Adjustable heightno
ColourBlack
Product codes
SAPDQF468
STK7914410
PLC7914410
GTIN/EAN3185280485406
Manufacturer part numberWAM400TW1
Vendor material numberWAM400TW1
Basic information
Package measurements (L x W x H)512 x 354 x 76 mm
Package volume13.775 l
Package weight5.3 kg
Base uniteach
Package units1 / 2
Package contents–
UNSPSC26121636
BrandERARD
VendorFINNSAT OY
