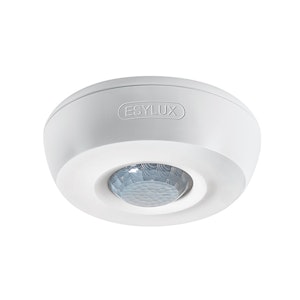

PRESENCE INDICATOR ESYLUX PD 360I/8 BASIC ELC
Product code
2618568
Presence detector with 360° detection area for ceiling mounting. Detection range up to 8 m diameter at the recommended mounting height of 3 m (maximum permitted mounting height 5 m). Automatic light control (channel 1-4) to a uniform light level based on presence and daylight (ESYLUX Light Control interface). Pre-programmed factory setting ensures immediate readiness for use. Easy to program using the "blue mode" remote control technique or adjustment elements. The detector can be used in full or semi-automatic mode. Reduction of light output by 10-50% after a time delay, functions as orientation lighting in entrance halls and passageways. Integrated pre-warning for turn-off. Standard model as a surface-mounted device. Recessed ceiling mounting available with additional accessories. Directed area dimming included with the provided lens mask. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Movement sensor for bus system (EC001582)
Bus system KNXno
Bus system KNX-RF (Radio Frequency)no
Bus system KNX Secureno
Bus system KNX Secure-RF (Radio Frequency)no
Bus system radio frequencyno
Bus system LONno
Bus system Powernetno
Other bus systemsOther
Compatible with Casambino
Radio frequency bidirectionalno
ModelPresence detector
Mounting methodSurface mounted
Suitable for ceiling mountingyes
Suitable for wall mountingno
MaterialPlastic
Product codes
SAPCND564
STK2618568
PLC2618568
GTIN/EAN4015120431357
Manufacturer part numberEB10431357
Vendor material number2618568
Basic information
Package measurements (L x W x H)33 x 101 x 102 mm
Package volume0.728 l
Package weight0.133 kg
Base uniteach
Package units1 / 20
Package contents–
UNSPSC46171608
BrandESYLUX
VendorESYLUX SUOMI OY
