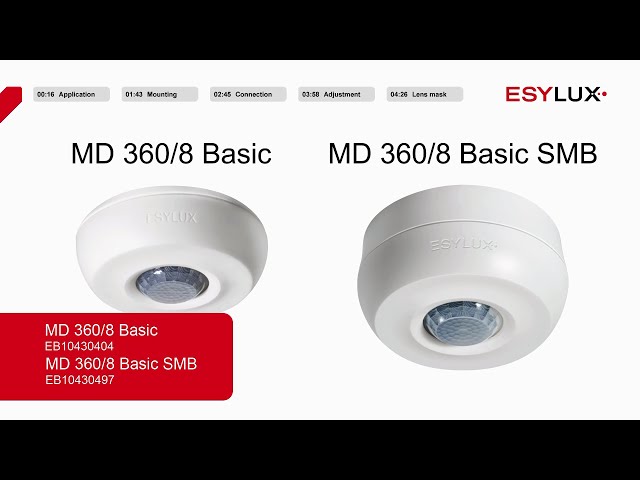

MD 360/8 BASIC EB10430404 ESYLUX NORGE AS
Product code
2618426
Motion sensor and 360° detection area for ceiling mounting. Up to 8 meters range at the recommended mounting height of 3 meters. Suitable for use in small spaces and passageways with little or no daylight. Zero-point switching extends the lifespan of relays and lamps in electronic switching devices (e.g., fluorescent lights, LEDs). Factory settings configured for immediate installation. Standard model is a surface-mounted device with a special surface-mounted enclosure for greater cable space, which can be recessed into the ceiling using additional accessories.
Features
- 10 A high-power relays
- Automatic light control
- Additional push-button input
- Extended detection area via parallel connection
- Directed area dimming included with lens mask
Product details
Technical specifications
Product class (ETIM)Movement sensor/presence detector complete (EC000133)
ModelMovement sensor
Movement sensor/presence detector technologyPassive infrared
Constant light controlno
HVAC-controlno
Forced switch onyes
Forced switch offyes
Animal zoneno
Creep-under protectionno
Background monitoringno
Networkableno
Scan angle360 °
Optimum mounting height3 m
Staircase light controlleryes
Bridging switchno
Max. reach sideways4 m
Product codes
SAPASO775
STK2618426
PLC2618426
GTIN/EAN4015120430497
Manufacturer part numberEB10430497
Vendor material number2618426
Basic information
Package measurements (L x W x H)105 x 105 x 72 mm
Package volume0.794 l
Package weight0.18 kg
Base uniteach
Package units1 / 20
Package contents–
UNSPSC46171608
BrandESYLUX
VendorESYLUX SUOMI OY
