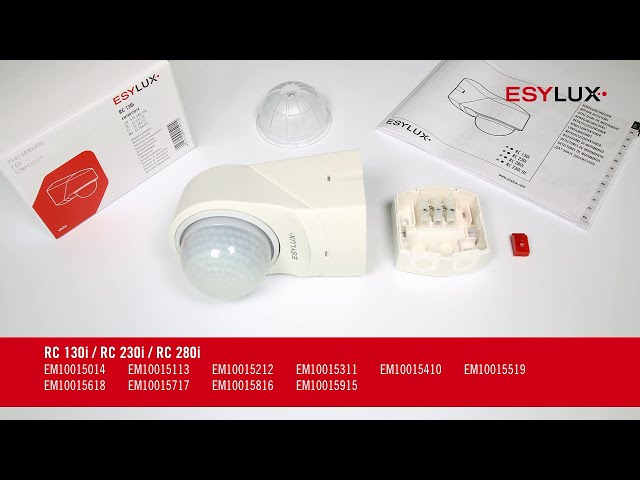

MOTION DETECTOR RC 230I STAINLESS STEEL APPEAR
Product code
2618358
Motion detector with 230° detection range and long range. 360° anti-tamper protection enables seamless detection, remotely controllable with a remote. Programmable via remote, e.g., for persistent light ON/OFF and automatic time-based light level reading function. Factory-programmed memory ensures immediate readiness for use. Integrated selection switch prevents misuse through test mode/remote control/rotation setting. One-hand mounting with mounting bracket. Double cable gland entry. Hidden mounting base with ample wiring space. Adjustable detection range with additional Focus-LED as a setting aid. Built-in adjustment elements prevent accidental parameter changes. Wall or ceiling mounting possible without accessories thanks to the swivel joint. Dimming of individual areas included with the provided cover (individually cuttable). Special mounting bracket available as an accessory for indoor and outdoor corner installations. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Movement sensor/presence detector complete (EC000133)
ModelMovement sensor
Movement sensor/presence detector technologyPassive infrared
Constant light controlno
HVAC-controlno
Forced switch onno
Forced switch offno
Animal zoneno
Creep-under protectionyes
Background monitoringno
Networkableno
Scan angle230 °
Optimum mounting height2.5 m
Staircase light controlleryes
Bridging switchno
Max. reach sideways20 m
Product codes
SAPAMC661
STK2618358
PLC2618358
GTIN/EAN4015120015618
Manufacturer part numberEM10015618
Vendor material number2618358
Basic information
Package measurements (L x W x H)36 x 25 x 47 mm
Package volume0.042 l
Package weight0.071 kg
Base uniteach
Package units1 / 18 / 540
Package contents–
UNSPSC46171608
BrandESYLUX
VendorESYLUX SUOMI OY
