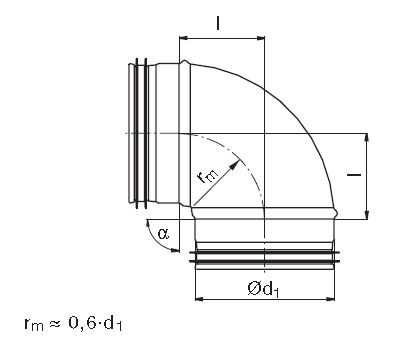

BEND SHORT BKU 160 90
Product code
8100076
A factory-installed double seal strip made of homogeneous EPDM rubber is used in the corner fitting. The seal strip withstands rigorous handling and temperature fluctuations. Thanks to the seal strip, the system joints are extremely tight.
Features- bend angle: 90°
- duct diameter: 160 mm
- radius: short radius rm ? 0.6 • d1
- material: galvanized steel
Product details
Technical specifications
Product class (ETIM)Bend round air duct (EC010121)
Nominal duct diameter160 mm
With pre-mounted sealyes
Bend modelSquare bend
Bend angle90 °
Air tightness class according to EN 1751D
Product codes
SAPALL409
HPAC8100076
PLC8100076
GTIN/EAN7319660279057
Manufacturer part number10201619
Vendor material number10201619
Basic information
Package measurements (L x W x H)220 x 220 x 165 mm
Package volume7.986 l
Package weight0.5 kg
Base uniteach
Package units1 / 15 / 90
Package contents–
UNSPSC40101506
BrandETS NORD
VendorETS NORD AS, SUOMEN SIVULIIKE
Documents (2)
Images
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)1.55
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000474
