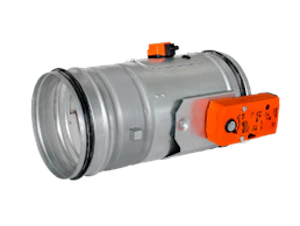

FIRE DAMPER ETS NORD FDMR-60 100 .50 EI 60S
Product code
8432997
Lightweight EIS60 class fire damper equipped with an electric 24V actuator. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Round fire damper (EC010354)
MaterialSteel
Nominal duct diameter100 mm
Fire damper diameter100 mm
Connection 1Insert end
Connection 2Insert end
Euro fire class according to EN 13501-1A1
Surface protectionGalvanic/electrolytic zinc plated
OperationElectromotor 24 V
Built-on end switch in closed positionyes
Built-on end switch in open positionyes
Can be used on solid walls/floorsyes
Can be used directly against walls/floorsno
Can be used in separating partitionsyes
Can be used at a distance from wallsyes
With inspection hatchyes
Product codes
SAPCPX269
HPAC8432997
PLC8432997
GTIN/EAN4743302751992
Manufacturer part number110423029
Vendor material number110423029
Basic information
Package measurements (L x W x H)100 x 153 x 400 mm
Package volume6.12 l
Package weight2.8 kg
Base uniteach
Package units1
Package contents–
UNSPSC40101506
BrandETS NORD
VendorETS NORD AS, SUOMEN SIVULIIKE
