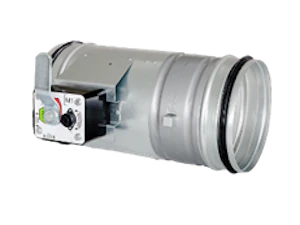

FIRE DAMPER ETS NORD FDMR-60 200 .01 EI 60S
Product code
8432972
Hand-held lightweight EIS60 class fire panel. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Round fire damper (EC010354)
MaterialSteel
Nominal duct diameter200 mm
Fire damper diameter200 mm
Connection 1Insert end
Connection 2Insert end
Euro fire class according to EN 13501-1A1
Surface protectionGalvanic/electrolytic zinc plated
OperationStandard fuse
Built-on end switch in closed positionno
Built-on end switch in open positionno
Can be used on solid walls/floorsyes
Can be used directly against walls/floorsno
Can be used in separating partitionsyes
Can be used at a distance from wallsyes
With inspection hatchyes
Product codes
SAPCPX251
HPAC8432972
PLC8432972
GTIN/EAN4743302751749
Manufacturer part number110423004
Vendor material number110423004
Basic information
Package measurements (L x W x H)200 x 320 x 400 mm
Package volume25.6 l
Package weight4.2 kg
Base uniteach
Package units1
Package contents–
UNSPSC40101506
BrandETS NORD
VendorETS NORD AS, SUOMEN SIVULIIKE
