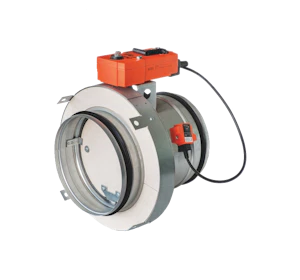

FIRE DAMPER WITH MOTOR FDMS 500 .50 24V EIS 60
Product code
8432190
EIS60/EIS90 class fire damper equipped with an electric 24V actuator. The compact design of FDMS enables installation even in confined spaces. It is easy to install and insulate. CE marked according to EN 15650. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Round fire damper (EC010354)
MaterialSteel
Nominal duct diameter500 mm
Fire damper diameter500 mm
Connection 1Insert end
Connection 2Insert end
Euro fire class according to EN 13501-1A1
Surface protectionGalvanic/electrolytic zinc plated
OperationElectromotor 24 V
Built-on end switch in closed positionyes
Built-on end switch in open positionyes
Can be used on solid walls/floorsyes
Can be used directly against walls/floorsyes
Can be used in separating partitionsyes
Can be used at a distance from wallsyes
With inspection hatchno
Product codes
SAPCPX345
HPAC8432190
PLC8432190
GTIN/EAN4743302720981
Manufacturer part number110422048
Vendor material number110422048
Basic information
Package measurements (L x W x H)680 x 600 x 265 mm
Package volume108.12 l
Package weight14.16 kg
Base uniteach
Package units1 / 6
Package contents–
UNSPSC40101506
BrandETS NORD
VendorETS NORD AS, SUOMEN SIVULIIKE
