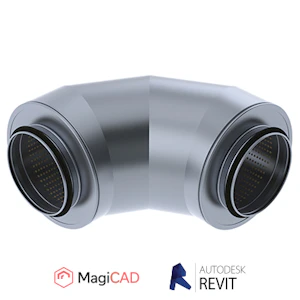

ROUND BEND SILENCER ETS NORD NRFV 100-250 MINERALWOOL
Product code
8324468
The sound absorber uses mineral wool as the acoustic insulation. The perforated inner tube and outer casing of the silencer are made of hot-dip galvanized steel. A fabric is placed between the insulation and the perforated tube to prevent wool fibers from entering the duct and breathing air. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Sound absorber round air duct (EC011019)
Material outer pipeSendzimir-galvanised steel
Nominal duct diameter250 mm
Inner diameter250 mm
Flexibleno
Connection 1Insert end
Connection 2Insert end
With pre-mounted sealyes
Insulation thickness100 mm
Insulating materialRock wool
With protection clothyes
Vapour inhibition layerno
With core/coneno
Damping 63 Hz1 dB
Damping 125 Hz2 dB
Damping 250 Hz6 dB
Product codes
SAPDJY752
HPAC8324468
PLC8324468
GTIN/EAN4743302134245
Manufacturer part number110510005
Vendor material number110510005
Basic information
Package measurements (L x W x H)450 x 725 x 725 mm
Package volume236.531 l
Package weight8.3 kg
Base uniteach
Package units1
Package contents–
UNSPSC40101505
BrandETS NORD
VendorETS NORD AS, SUOMEN SIVULIIKE
Documents (2)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)3.1104
GWP, uniteach
Source for GWP dataEPD
