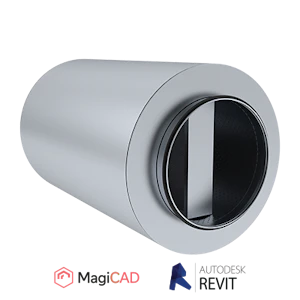

ROUND SILENCER ETS NORD NRFB 100 1000/1200 MINERALWOOL
Product code
8324323
Round silencer 100 mm mineral wool and 100 mm damping element. The silencer has a perforated inner pipe attached to the pipe fitting via a seal. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Sound absorber round air duct (EC011019)
Material outer pipeSendzimir-galvanised steel
Nominal duct diameter1000 mm
Inner diameter1000 mm
Flexibleno
Connection 1Insert end
Connection 2Insert end
With pre-mounted sealyes
Insulation thickness100 mm
Insulating materialRock wool
With protection clothno
Vapour inhibition layerno
With core/coneno
Damping 63 Hz1 dB
Damping 125 Hz3 dB
Damping 250 Hz7 dB
Product codes
SAPDJY713
HPAC8324323
PLC8324323
GTIN/EAN4743302133484
Manufacturer part number102111002B
Vendor material number102111002B
Basic information
Package measurements (L x W x H)1200 x 1200 x 1200 mm
Package volume1728 l
Package weight92 kg
Base uniteach
Package units1
Package contents–
UNSPSC40101505
BrandETS NORD
VendorETS NORD AS, SUOMEN SIVULIIKE
Documents (2)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)34.4768
GWP, uniteach
Source for GWP dataEPD
