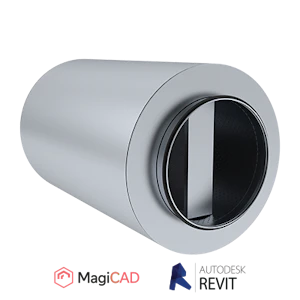

ROUND SILENCER ETS NORD NRFB 100 315/900 MINERALWOOL
Product code
8324318
Round silencer 100 mm mineral wool and 100 mm damping element. The silencer has a perforated inner pipe attached to the pipe fitting via a seal. This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Sound absorber round air duct (EC011019)
Material outer pipeSendzimir-galvanised steel
Nominal duct diameter630 mm
Inner diameter630 mm
Flexibleno
Connection 1Insert end
Connection 2Insert end
With pre-mounted sealyes
Insulation thickness100 mm
Insulating materialRock wool
With protection clothno
Vapour inhibition layerno
With core/coneno
Damping 63 Hz2 dB
Damping 125 Hz5 dB
Damping 250 Hz9 dB
Product codes
SAPDJY712
HPAC8324318
PLC8324318
GTIN/EAN4743302133675
Manufacturer part number10326390
Vendor material number10326390
Basic information
Package measurements (L x W x H)900 x 830 x 830 mm
Package volume620.01 l
Package weight46 kg
Base uniteach
Package units1
Package contents–
UNSPSC40101505
BrandETS NORD
VendorETS NORD AS, SUOMEN SIVULIIKE
Documents (2)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)17.2384
GWP, uniteach
Source for GWP dataEPD
