INDUSTRIAL LUMINAIRE OPEN TAGE2R L160 27000LM 840 WB90 D
Product code
4306752

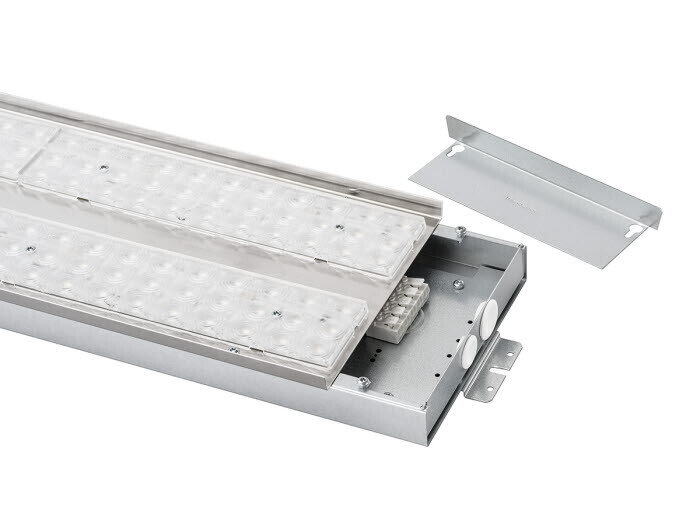

Tage2R, open industrial luminaire
Tage2R is an energy-efficient and easily installed IP23 industrial luminaire,
which does not need to be opened for installation or connection.
It is always through-wired and an excellent choice especially for renovation projects.
It can be mounted directly to the ceiling or to a luminaire suspension rail.
Tage2R is suitable for example in high production areas and warehouses.
It is available in two different lengths, 1300 mm and 1600 mm, and three optical options (NB30, MB60, WB90).
The light distribution can also be customized so that adjacent LED modules have different optics.
The luminaire is also available in white.
Recommended mounting heights for 20000 lm Tage2R:
Wide-beam Tage2R WB90 is suitable for mounting heights of 7 - 10 m.
Medium-wide-beam Tage2R MB60 is suitable for mounting heights of 10 - 15 m.
Always verify the suitability of the optics with lighting calculations.
Construction: body and end caps made of galvanized steel sheet
Glare protection: clear PMMA optics

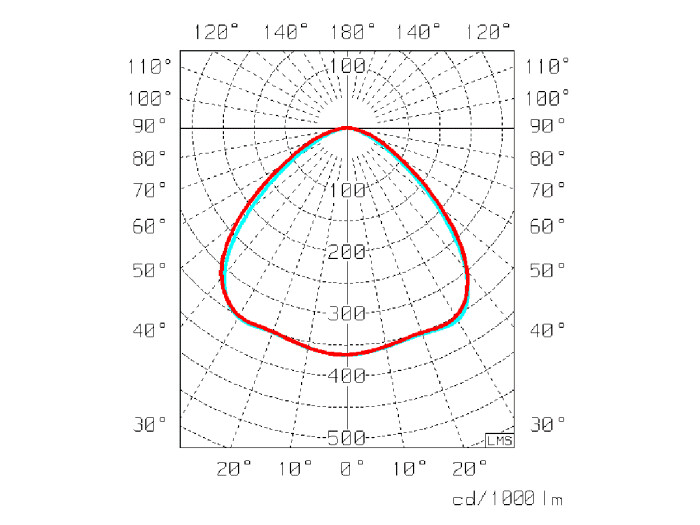

Optical options: NB (30°), WB (90°), MB (60°)
Protection class: IP23
Reflector: aluminum reflector and heat sink plate
Wiring: two conduit entries at each end,
1 x Ř 23 mm + 1 x Ř 20 mm.
The luminaire is through-wired with 5x2.5 mm².
Five-pin quick-connect terminals at both ends.
Installation: to ceiling, luminaire suspension rail, or horizontal cable
Light source: LED
Color temperature: 4000 K
Operating temperature: -20 … +35 °C
Luminous flux: 137 W, 20000 lm / 146 lm/W
Color rendering: Ra >80 (also available upon order Ra >90), SDCM 3
Lifetime: Lifetime: 100000 h, L80B50
Warranty: 5 years This product description is an automated translation of the original Finnish description.
Tage2R is an energy-efficient and easily installed IP23 industrial luminaire,
which does not need to be opened for installation or connection.
It is always through-wired and an excellent choice especially for renovation projects.
It can be mounted directly to the ceiling or to a luminaire suspension rail.
Tage2R is suitable for example in high production areas and warehouses.
It is available in two different lengths, 1300 mm and 1600 mm, and three optical options (NB30, MB60, WB90).
The light distribution can also be customized so that adjacent LED modules have different optics.
The luminaire is also available in white.
Recommended mounting heights for 20000 lm Tage2R:
Wide-beam Tage2R WB90 is suitable for mounting heights of 7 - 10 m.
Medium-wide-beam Tage2R MB60 is suitable for mounting heights of 10 - 15 m.
Always verify the suitability of the optics with lighting calculations.
Construction: body and end caps made of galvanized steel sheet
Glare protection: clear PMMA optics
Optical options: NB (30°), WB (90°), MB (60°)
Protection class: IP23
Reflector: aluminum reflector and heat sink plate
Wiring: two conduit entries at each end,
1 x Ř 23 mm + 1 x Ř 20 mm.
The luminaire is through-wired with 5x2.5 mm².
Five-pin quick-connect terminals at both ends.
Installation: to ceiling, luminaire suspension rail, or horizontal cable
Light source: LED
Color temperature: 4000 K
Operating temperature: -20 … +35 °C
Luminous flux: 137 W, 20000 lm / 146 lm/W
Color rendering: Ra >80 (also available upon order Ra >90), SDCM 3
Lifetime: Lifetime: 100000 h, L80B50
Warranty: 5 years This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for wall mountingno
Suitable for suspended mountingno
Suitable for ceiling mountingyes
Suitable for built-in mountingno
Suitable for surface mountingyes
Suitable for light line configurationno
Suitable for workplace according to EN 12464-1no
Lamp typeLED exchangeable
With light sourceyes
Suitable for number of light sources1
Lamp holderOther
Housing materialSteel
Surface protection housingGalvanised
Housing colourAluminium
Material coverWithout cover
Product codes
SAPCZS570
STK4306752
PLC4306752
GTIN/EAN7330139460820
Manufacturer part numberE7216873
Vendor material number4306752
Basic information
Package measurements (L x W x H)1650 x 230 x 70 mm
Package volume26.565 l
Package weight6 kg
Base uniteach
Package units1
Package contents–
UNSPSC39111544
BrandEXAKTOR
VendorPROTON LIGHTING AB
Documents (3)
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)78.
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
