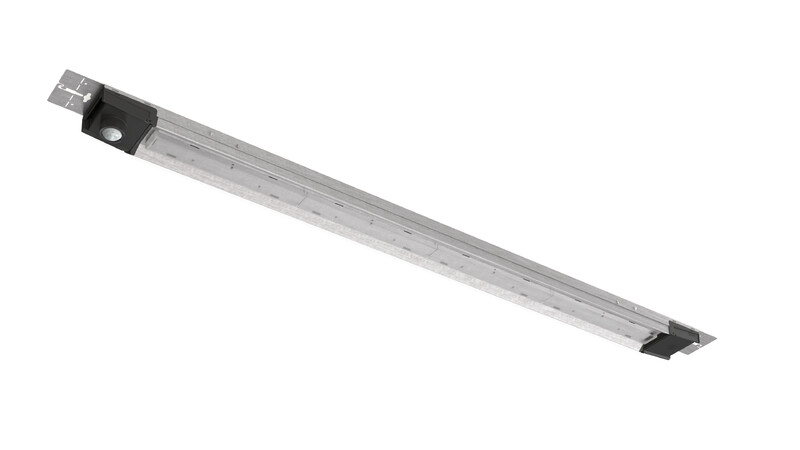

SENSOR LUMINAIRE TAGE G2 L130 9KLM 60 DEG BTPIR

Tage G2 – where functionality meets design Tage G2 is a unique upgrade to the popular Tage light fixture. It is designed as the easiest-to-install IP23 light on the market. The Tage G2 housing is made from galvanized steel sheet and end caps from recycled plastic. It is as durable and versatile as its predecessor, but even easier to install. Tool-free connection Tage G2 features an innovative cable management solution that saves time and eliminates the need for cable glands. Once the light is mounted in place, the end caps can be opened without tools for cable entry. The cable strain reliefs also open without tools. Multiple installation options Tage G2 can be mounted either to the ceiling or to a light rail. The fixtures also come with pre-installed brackets for horizontal wire suspension. Versatile and efficient Tage G2 is available in two different lengths (1300 mm and 1600 mm). Three symmetric optics are available: 30°, 60°, and 90°, and two asymmetric optics: AS and DAS. Choose between ON/OFF, DALI, or BTPIR (Bluetooth DALI) wireless control systems. In the ON/OFF model, the light output can be selected between two options using a dip switch. Tage G2 2R is as wide as the single-row Tage G2 but more powerful. Alternative quick-connect Tage G2 also offers a smooth installation option with quick-connects. Lights marked with the letter Q feature EnstoNet male/female connectors on both ends under the cover, enabling IP23 classification even with quick-connect installation. Wireless control Wireless control simplifies planning and implementation by eliminating the need for wiring or a separate control center. The control system is flexible, allowing grouping of lights, light levels, and delay times to be adjusted via the Exaktor Koolmesh app. Each Tage G2 BTPIR light has a wireless, Bluetooth-based PIR sensor, and the lights communicate with each other via a mesh network. The detection area can be adjusted by moving the sensor vertically on the light’s end cap. The sensor operates up to 15 m in height. Customized solution Tage G2 is manufactured at our factory in Värnamo, Sweden. You can influence the housing color or the LED color temperature and color rendering index to obtain a customized solution tailored to your needs. klm = luminous flux in kilolumen BTPIR = equipped with wireless Bluetooth PIR sensor Q = equipped with EnstoNet quick-connects AS = asymmetric optic DAS = double asymmetric optic This product description is an automated translation of the original Finnish description.
