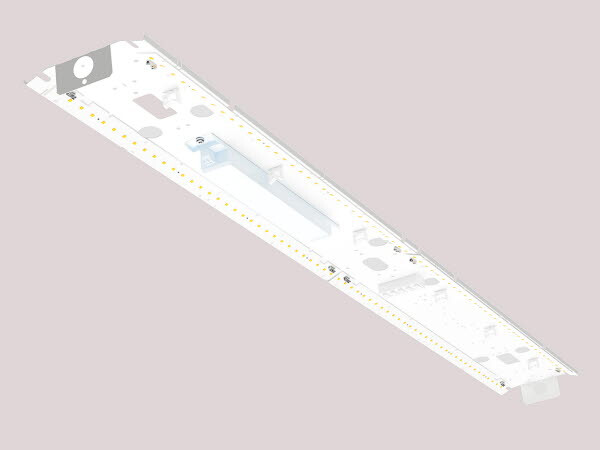

SPARE PARTS SET NAIAD REFIT NAIAD REFIT L120 830
Product code
4306794
The Naiad Refit module makes it easy to upgrade old Naiad T5 luminaires to LED luminaires.
Upgrading a well-maintained old luminaire is a cheaper and more environmentally friendly option than replacing the entire luminaire with a new one.
The Naiad Refit replacement module comes pre-equipped with an LED light source, ballast, and connectors.
It is a ready-to-install unit that allows easy conversion of an old fluorescent luminaire into an LED luminaire.
The Refit module is attached to the old luminaire housing with five screws, and the old luminaire does not need to be removed from the wall or ceiling.
An opal diffuser is included and can be installed as needed on the luminaire’s reflector (the bright inner side).
Light output Naiad Refit L120 830/840:
Clear reflector (T5) with opal diffuser: 3700 lm/3900 lm
Opal reflector (LED): 4100 lm/4300 lm Light output
Naiad Refit L150 830/840:
Clear reflector (T5) with opal diffuser: 4700 lm/4900 lm
Opal reflector (LED): 5300 lm/5500 lm
Manufactured in Sweden This product description is an automated translation of the original Finnish description.
Upgrading a well-maintained old luminaire is a cheaper and more environmentally friendly option than replacing the entire luminaire with a new one.
The Naiad Refit replacement module comes pre-equipped with an LED light source, ballast, and connectors.
It is a ready-to-install unit that allows easy conversion of an old fluorescent luminaire into an LED luminaire.
The Refit module is attached to the old luminaire housing with five screws, and the old luminaire does not need to be removed from the wall or ceiling.
An opal diffuser is included and can be installed as needed on the luminaire’s reflector (the bright inner side).
Light output Naiad Refit L120 830/840:
Clear reflector (T5) with opal diffuser: 3700 lm/3900 lm
Opal reflector (LED): 4100 lm/4300 lm Light output
Naiad Refit L150 830/840:
Clear reflector (T5) with opal diffuser: 4700 lm/4900 lm
Opal reflector (LED): 5300 lm/5500 lm
Manufactured in Sweden This product description is an automated translation of the original Finnish description.
Product details
Technical specifications
Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Lamp typeLED exchangeable
With light sourceyes
Lamp holderOther
Housing materialSteel
Surface protection housingPowder coating
Housing colourWhite
Material coverWithout cover
Type of gridNone
Voltage typeAC
Nominal voltage220-240 V
Type of control gearLED operating device current-controlled
With control gearyes
Exchangeable control gearyes
Dimming 0-10 Vno
Dimming 1-10 Vno
Product codes
SAPDBB188
STK4306794
PLC4306794
GTIN/EAN7330139253316
Manufacturer part numberE7218552
Vendor material number4306794
Basic information
Package measurements (L x W x H)1174 x 122 x 35 mm
Package volume5.013 l
Package weight1.2 kg
Base uniteach
Package units1
Package contents–
UNSPSC39101628
BrandEXAKTOR
VendorPROTON LIGHTING AB
Documents (1)
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)15.6
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
