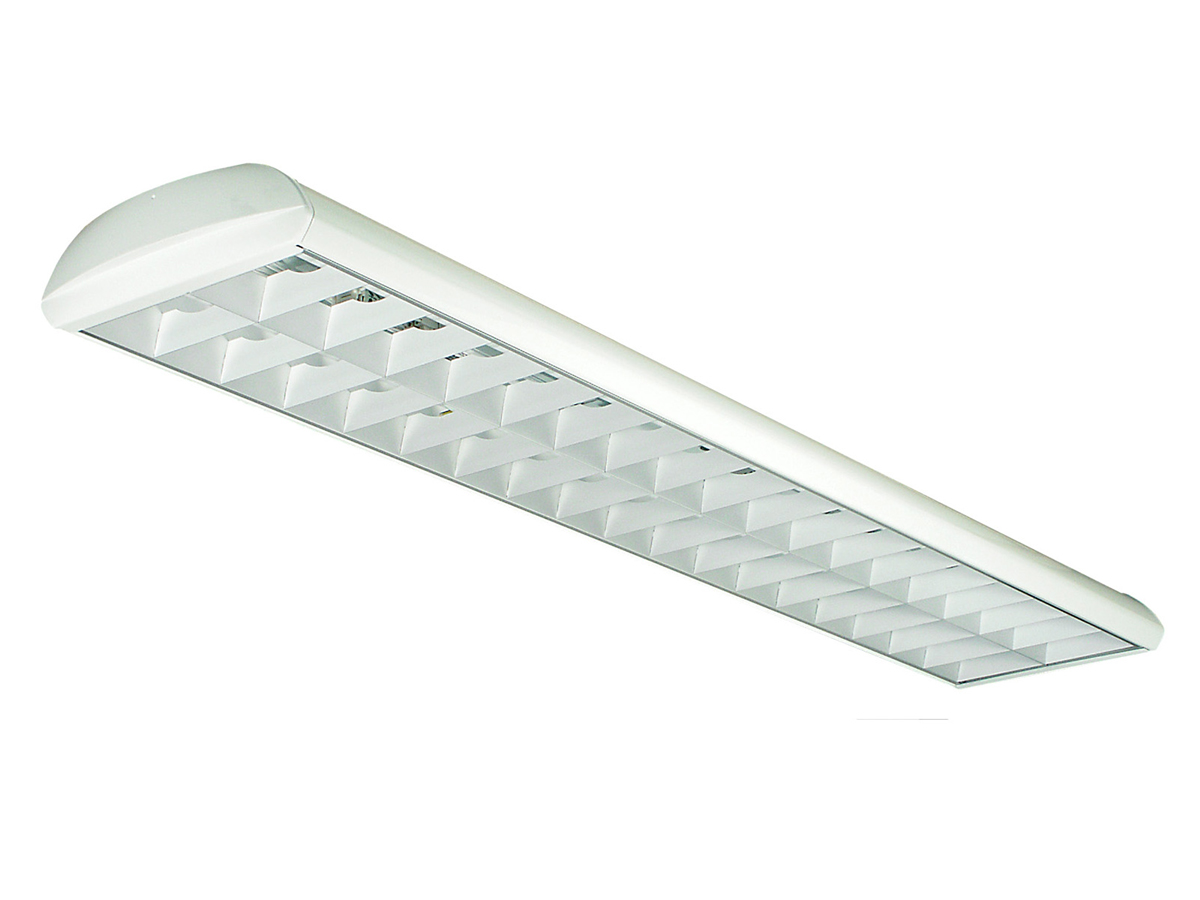

SURFACE MNT./SUSP LUM PEAK LED PEAK LED 36W 840 DALI
Product code
4284385
Peak LED
Peak LED is a surface-mounted or suspended basic luminaire for public spaces such as offices, classrooms, and retail stores. Its外形 and light output make it ideal for renovation projects and applications requiring high light output.
Installation directly on the ceiling or on a suspension rail.
Available in 830 and 840 color temperatures in two different lengths (1300 and 1600 mm).
Peak LED is a surface-mounted or suspended basic luminaire for public spaces such as offices, classrooms, and retail stores. Its外形 and light output make it ideal for renovation projects and applications requiring high light output.
Installation directly on the ceiling or on a suspension rail.
Available in 830 and 840 color temperatures in two different lengths (1300 and 1600 mm).
- White steel housing
- EP glare protection cassette with matte side reflectors and white-coated cross baffles.
- Textured acrylic lens cover.
- Light output 3500 - 10900 lm
- Lifetime LLMF 100 000 h @25 °C 80%
- Operating temperature -20 °C...+35 °C
- IP20
- Ra>80
- SCDM 3
- 5-year warranty
Product details
Technical specifications
Product class (ETIM)Ceiling-/wall luminaire (EC002892)
Suitable for suspended mountingyes
Suitable for ceiling mountingyes
Suitable for built-in mountingno
Suitable for surface mountingyes
Suitable for light line configurationno
Suitable for workplace according to EN 12464-1no
Lamp typeLED not exchangeable
With light sourceyes
Suitable for number of light sources1
Lamp holderOther
Housing materialSteel
Surface protection housingPowder coating
Housing colourWhite
Material coverWithout cover
Type of gridMatt
Product codes
SAPCFB774
STK4284385
PLC4284385
GTIN/EAN7330139200402
Manufacturer part numberE7011592
Vendor material number4284385
Basic information
Package measurements (L x W x H)1294 x 234 x 73 mm
Package volume22.104 l
Package weight3.6 kg
Base uniteach
Package units1 / 39
Package contents–
UNSPSC39111544
BrandEXAKTOR
VendorPROTON LIGHTING AB
Documents (4)
Brochures & documents
Links
Environment and safety
Carbon footprint data
Carbon footprint of product manufacturing (A1–A3 GWP value)46.8
GWP, uniteach
Source for GWP dataco2data.fi
Emissions database (co2data.fi) ID7000000490
